Product Details

Overview

The next evolution of micro FPV cameras is here, and now with Team Spektrum FPV flare. The Team Spektrum FPV edition Runcam Micro Swift 3 has all the benefits of earlier versions with more features. Full camera control from your flight controller* allows users to change camera settings on fly straight from their OSD (on-screen display) or from a compatible Gen2 Spektrum transmitter via the Text Gen Telemetry function.

Video quality is great due to the Wide Dynamic Range and versatile 1/3" SONY Super HAD II CCD image sensor. Integrated into your video feed is a helpful OSD that can be customized to display plot name, current voltage, and more.

Specifications

  • Model: Micro Swift 3
  • Image Sensor: 1/3" SONY Super HAD II CCD
  • Horizontal Resolution: 600TVL
  • Lens: 2.1mm (M12) FOV165°
  • Signal System: PAL / NTSC
  • Integrated OSD: Yes
  • One Key Scene: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
  • S/N Ratio: >60dB (AGC OFF)
  • Electronic Shutter Speed: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • Auto Gain Control (AGC): Yes
  • Min. Illumination: 0.01Lux@1.2F
  • WDR: D-WDR
  • DNR: 2DNR
  • Day/Night: Color/Auto/B&W
  • Remote Control: Flight Controllers : BetaFlight 3.3 / ButterFlight 3.4 / Cleanflight 2.2
  • Power: DC 5-36V
  • Current: 60mA@12V / 120mA@5V
  • Net Weight: 9g(2.3mm) / 11g(2.1mm)
  • Dimensions: L19mm*W19mm*H25mm

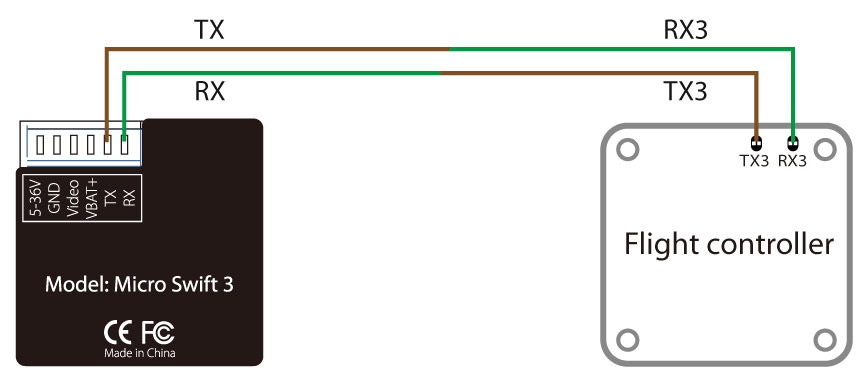

1. Flight controller wiring

Note: Take UART3 for example

Spektrum FPV Micro Swift 3 Camera

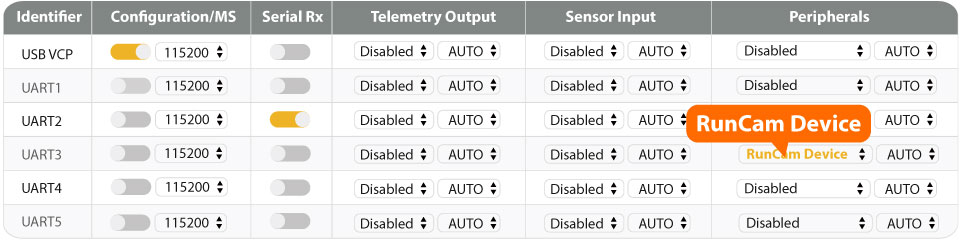

2. Betaflight 3.3 or above setting

Spektrum FPV Micro Swift 3 Camera

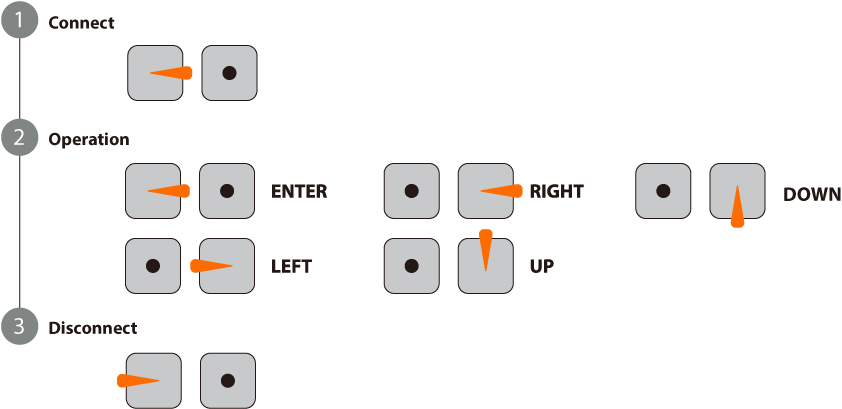

3. Remote control

Note: Take Mode-2 for example

Spektrum FPV Micro Swift 3 Camera

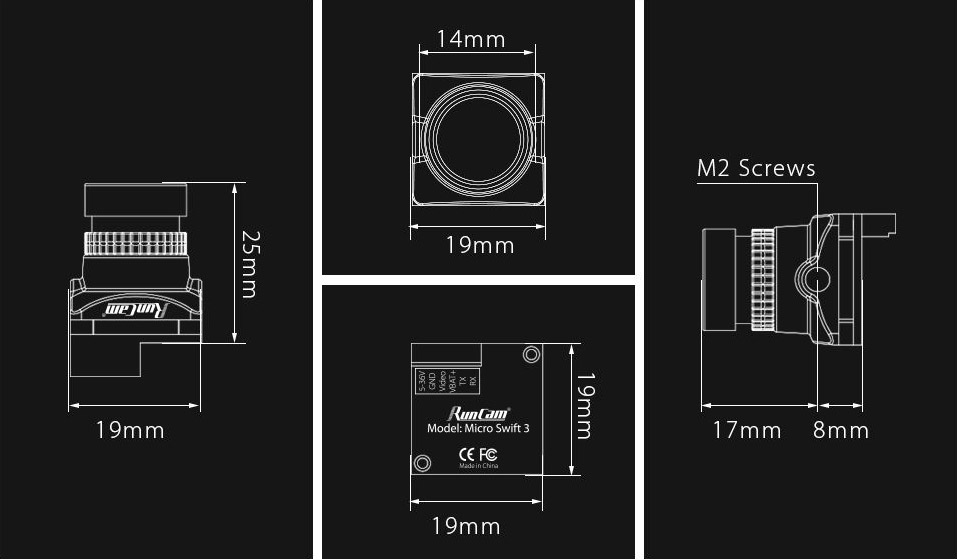

Dimensions

Spektrum FPV Micro Swift 3 Camera
