1/8 RC8T3.2 Nitro Team 4WD Truggy Kit

Item No.
Team Associated - ASC80943
$669.99
Discontinued | This Item is No Longer Available
Brand Logo
5 out of 5 Customer Rating

1/8 RC8T3.2 Nitro Team 4WD Truggy Kit

Item No.
Team Associated - ASC80943
Selected Store

Product Details

icon-box
In The Box
  • (1) RC8T3.2 Nitro Team Kit
  • (1) Product Manual
icon-how-to
Needed to Complete
  • 1:8 scale truck tires
  • 1:8 scale truck wheels
  • .21 class rear exhaust engine
  • Exhaust system: muffler and header joining pack, or muffler spring
  • 2- or 3-channel radio transmitter set with switch (2.4GHz recommended)
  • Transmitter batteries
  • 4.8-7.4v receiver battery, flat style, NiMH, LiPo, or LiFe
  • Steering servo
  • Throttle servo
  • Model car fuel (20-30% nitro recommended)
  • Fuel bottle
  • Glow igniter
  • Starter box
1/8 RC8T3.2 Nitro Team 4WD Truggy Kit

Features

  • New suspension arm design with inserts for flex adjustments
  • Longer rear suspension arm length with narrow rear arm mounts
  • New center bulkhead splits into unique front and rear top halves to prevent brake misalignment
  • Enclosed battery box for quick and easy battery removal
  • Larger receiver box for better wire management
  • One-piece carbon fiber transponder and electronic switch mount
  • Flex Control radio tray has three different configurations for chassis flex adjustment
  • New stiff shock bladder design improves jumping and handling performance
  • Updated shock cap works for bladder or emulsion type shock setups
  • Shorter and lower front bumper reduces drag and allows easier access to anti-roll bar screws
  • I.F.M.A.R.-approved rear wing
  • Updated chassis with chamfered front edges to reduce drag
  • Side guards are now threaded into the chassis from the top side of the car
  • 90% parts compatibility with the current generation of RC8.2 vehicles
  • 46T ring and 10T pinion gears on front and rear V3 differentials for consistent performance

Overview

Using principles learned from the development of the RC8B3.2, the rear suspension arms have been lengthened to use the narrow pivot design for increased traction and stability. Bottom-loaded suspension arm inserts provide adjustable flex and increase durability while keeping the arms debris-free and easy to clean. A 4-piece center bulkhead allows for easier access to the center differential to make adjustments even faster. A new rear shock tower has been developed to work with the new suspension arm geometry.

The all-new radio tray design has several new features: an enclosed battery box, a larger receiver box, integrated switch and transponder mounting, and adjustable flex configurations. Updated shock caps allow the RC8T3.2 to be run with the included new stiff bladders, standard bladders, or as emulsion with no bladders; all with the same cap.The RC8 platform was born with the Team Associated “Champions by Design” heritage, and we designed the RC8T3.2 to continue dominating the competition!

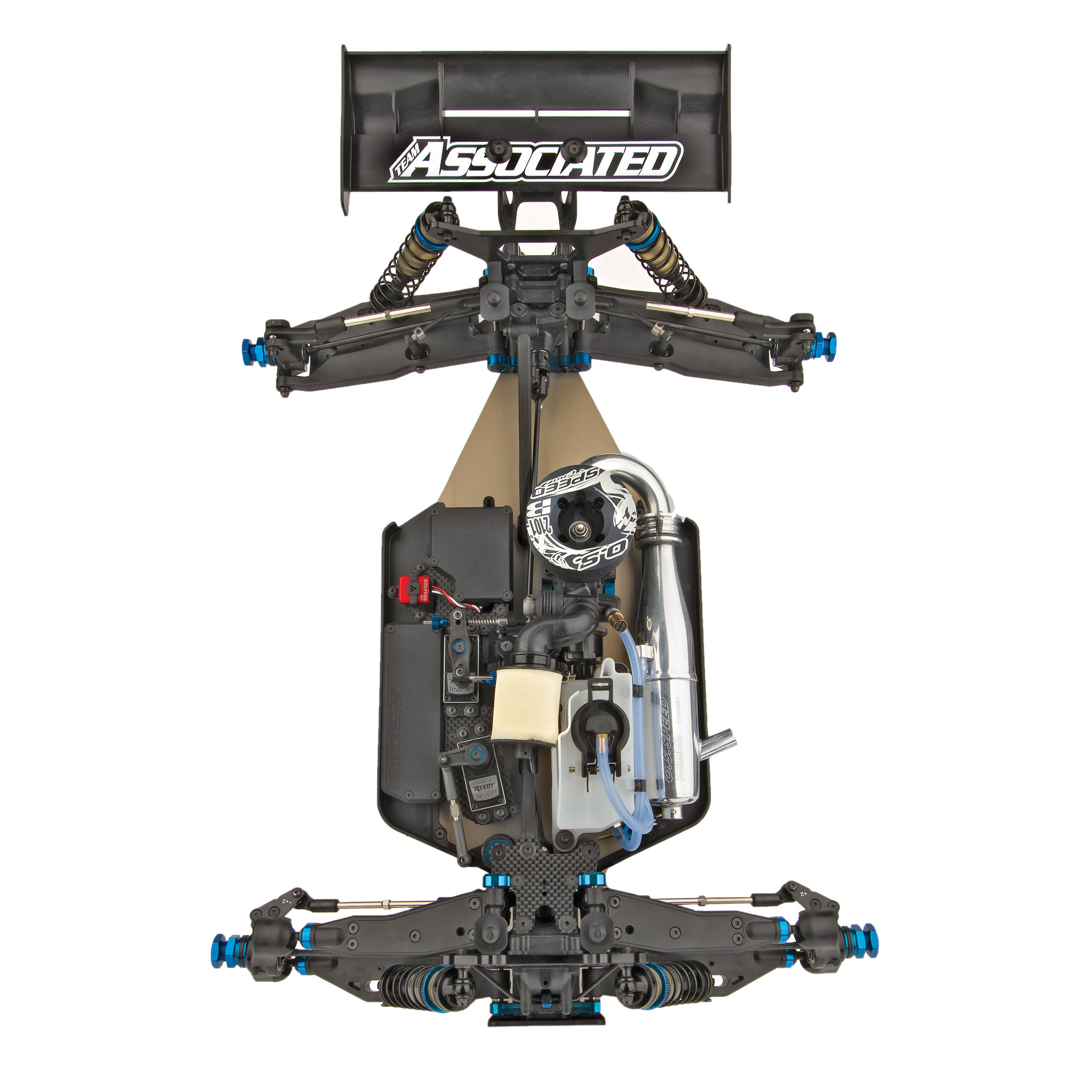

This vehicle needs extra parts to make it operational. See Needed To Complete for what extra equipment you'll need to make the vehicle operational. Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: engine, pipe and header, transponder, servos, receiver, wheels, tires. Assembly and painting required.

Needed to Complete
  • 1:8 scale truck tires
  • 1:8 scale truck wheels
  • .21 class rear exhaust engine
  • Exhaust system: muffler and header joining pack, or muffler spring
  • 2- or 3-channel radio transmitter set with switch (2.4GHz recommended)
  • Transmitter batteries
  • 4.8-7.4v receiver battery, flat style, NiMH, LiPo, or LiFe
  • Steering servo
  • Throttle servo
  • Model car fuel (20-30% nitro recommended)
  • Fuel bottle
  • Glow igniter
  • Starter box
  • CA (cyanoacrylate) glue
  • Spray paint or bottled paint and airbrush for polycarbonate body
  • Thread-locking compound
What's in the Box?
  • (1) RC8T3.2 Nitro Team Kit
  • (1) Product Manual

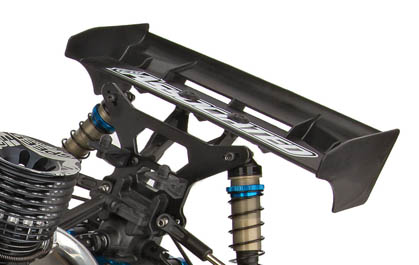

Rear Wing
Rear Wing

I.F.M.A.R.-approved rear wing



FEATURE_TITLE

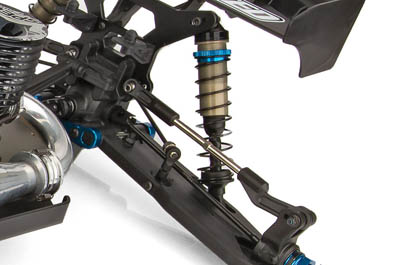

Shock Design

Stiff shock bladder design improves jumping and handling performance

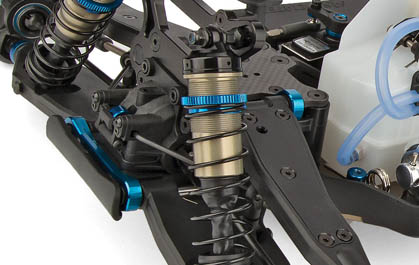

Suspension Arms
Suspension Arms

Suspension arm designed with inserts for flex adjustments. Longer rear suspension arm length with narrow rear arm mounts

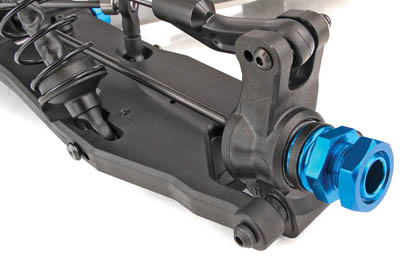

Side Guards
Side Guards

Side guards are now threaded into the chassis from the top side of the car

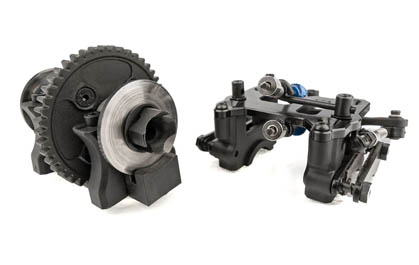

Center Bulkhead
Center Bulkhead

Center bulkhead splits into unique front and rear top halves to prevent brake misalignment

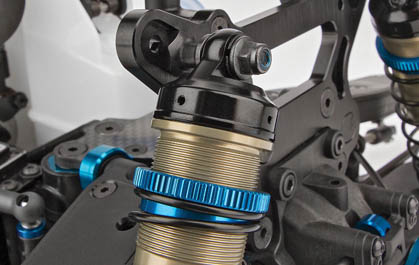

Updated Shock Cap
Updated Shock Cap

Updated shock cap works for bladder or emulsion type shock setups•

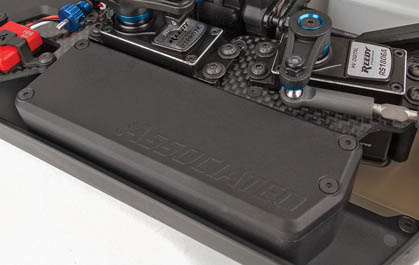

Battery Box
Battery Box

Enclosed battery box for quick and easy battery removal

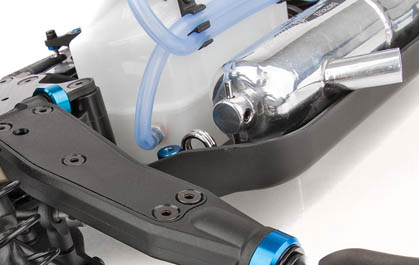

Shorter Bumper
Shorter Bumper

Shorter and lower front bumper reduces drag and allows easier access to anti-roll bar screws



Product Specifications

Receiver Sold Separately
Shock Type Oil-filled
Body Clear
Brakes Dual pad
Scale 1/8
Vehicle Type Truggy
Water-Resistant Yes
Completion Level Kit
Drivetrain 4WD
Internal Gear Ratio 4.6:1
Product Length 25.59" (650 mm)
Spur Gear 46T plastic
Suspension Adjustable
Radio Sold Separately
Power Type Glow
Servos Sold Separately
Wheelbase 14.82" (376.5mm)
