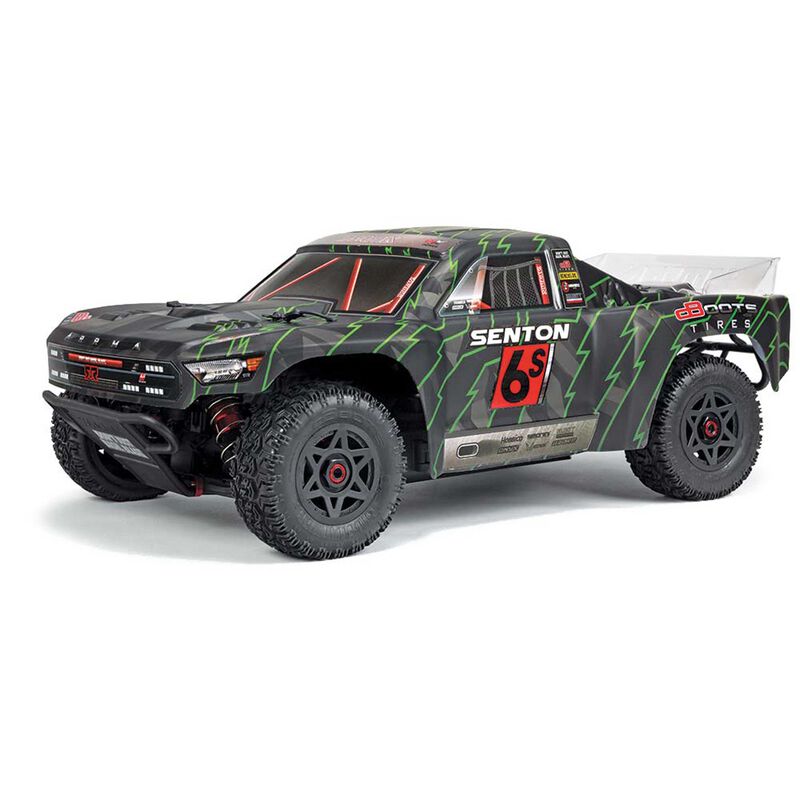

1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green

Item No. ARAD83LG
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green
Discontinued
Brand Logo
3.5 out of 5 Customer Rating

1/10 SENTON 6S BLX 4WD Brushless Short Course RTR, Black/Green

Item No. ARAD83LG
This Item is No Longer Available
Selected Store

Product Details

Quick Links
Manuals & Support

Key Features

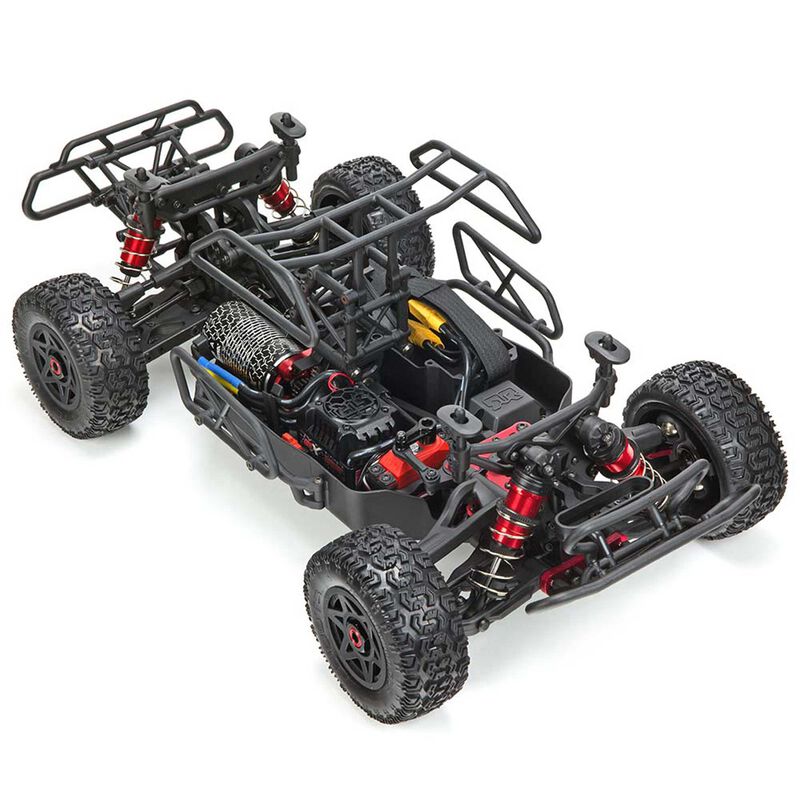

  • Chassis: 0.12" (3mm) thick aluminum, with side impact bumpers
  • Drive: Four wheel with CVD driveshafts
  • Radio: Tactic TTX300 3-channel with user programmable 3rd channel, steering rate adjustment, steering and throttle trim & end point adjustments, 3-channel TR326 high voltage (7.4V) micro receiver with failsafe, 70/30 throttle setting
  • Steering Servo: ADS-15M metal geared with 208 oz/in torque, .12 sec @ 60° transit speed
  • Motor: 2050kV brushless with 12T pinion gear
  • ESC: Arrma BLX185 150A
  • Shocks: Aluminum body, oil filled, big bore, plastic top and bottom caps and preload adjusters
  • Shock Towers: 0.20" (5mm) thick aluminum
  • Suspension: Reinforced hangers with inboard hinge pins that are less likely to pop out
  • Body: Trimmed and painted
  • Motor Mount: Aluminum
  • Gearboxes: Fully sealed
  • Tires: dboots Sidewinder 2, 1.7" (44mm) wide, 4.2" (108mm) diameter 2.2"/3" mounting bead
  • Wheels: Plastic construction, black in color, 2.2" (56mm) outer diameter, 1.6" (41.5mm) wide, 17mm hex
  • Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
  • Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis

Video Overview

Needed to Complete
  • Two 2-3S 5000mAh 35C minimum LiPo with XT90 connector, Onyx 11.1V 5000mAh 35C batteries recommended, or one or one 4-6S LiPo battery
  • Suitable Charger
  • LiPo charge bag, maintenance and trail equipment
What's in the box?
  • (1) RTR Senton 6S BLX Short Course Truck with 2.4GHz Radio, Brushless Motor, ESC, and Painted Body
  • (1) User Manual

Specifications

    Vehicle
  • Length: 22" (560mm)
  • Width: 11.6" (295mm)
  • Height: 7.67" (195mm)
  • Wheelbase: 12.5-12.67" (318-322mm)
  • Weight: 127oz (3.6kg)
  • Final Gear Ratio: 11.79
  • Pinion and Spur Gear Pitch: 1M
  • Maximum Battery Dimensions: 6.22 x 2.76 x 1.89" (158 x 70 x 48mm)
    Body
  • Length: 21.7" (552mm)
  • Width: 9.5" (242mm) behind front wheels, narrowest point 12.4" (315mm) at rear wheels, widest point
  • Height: 5.5" (140mm)

Product Specifications

Specs

Battery 4S or 6S 35C 5000mAh LiPo
Chassis Aluminum
Completion Level Ready-To-Run
Drivetrain 4WD
Power Type Electric
Max Battery Dimensions 6.22x1.89x2.76 in (158x48x70mm)
Motor Size 2050Kv
Motor Type Brushless
Product Height 7.68 in (195mm)
Product Length 21.65 in (550mm)
Product Weight 3.8kg
Product Width 11.61 in (295mm)
Scale 1/10
Speed Control BLX185 Waterproof
Vehicle Type Short Course Truck
Wheelbase 12.91 in (328mm)
