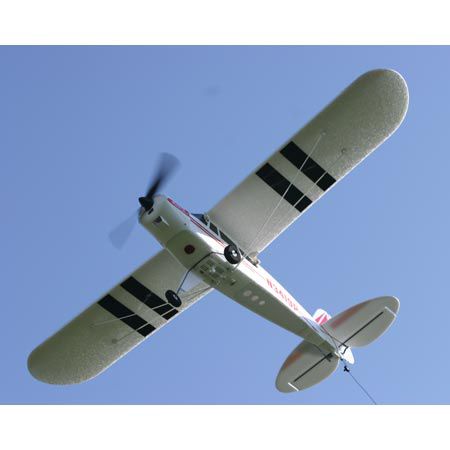

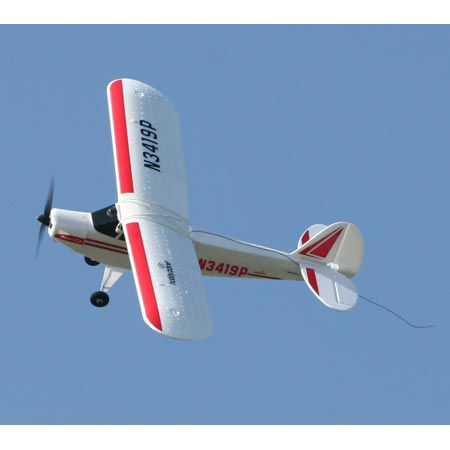

Image for Super Cub RTF Electric from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Key Features

  • Realistic scale features in a teach-yourself-to-fly plane
  • Powerful 480 motor offers great climb rate and power
  • 3-channel radio system
  • Steerable tail wheel for easy turns on the ground and controlled takeoffs and landings
  • Two transmitter-selectable flight modes, ACT "on" or "off"
  • Two chargers included: 3-hour AC delta peak wall charger and 1.2A variable rate DC peak charger
  • Steel wire pushrods for more precise control and added responsiveness and durability
  • Z-Foam™ construction provides excellent durability and is easily repairable with CA
  • X-Port™ technology equipped for use with add-on accessories such as Aerial Drop Module™ and Sonic Combat Module™
  • Detailed instruction manual and video CD provide instruction
  • Full set of replacement and accessory parts available
  • One-box purchase—everything needed to fly is included, even the batteries
  • A ready-to-fly design—just attach the wing, tail and landing gear and install the battery pack
  • An easy-to-install, one-piece wing that provides incredible handling in the wind and smooth flight

Needed To Complete

You don't need anything to get your Super Cub airborne. Just charge the included battery pack while attaching the wing, vertical tail stab and landing gear, and load the AA batteries into the transmitter. Before you know it, you'll be ready to go.

Overview

Anybody can have a good time flying the new Super Cub RTF.  It comes right out of the box with everything you need included...even batteries for the transmitter.  The Super Cub is equipped with  3-channel control that helps provide a true-scale flying experience.  Throttle, steering and pitch controls allow you to learn the basics of RC flight, safely and simply, while still having a great time flying.  Meanwhile, the instantly recognizable scale Cub design makes you feel as though you're flying a full-size pleasure plane.  In addition, the Super Cub comes with all of the features you expect from HobbyZone, including X-Port™ expandability.  Its durable Z-Foam™ construction makes the Super Cub incredibly strong and easy to repair, and its unique trim scheme makes it look great in the sky and in your hands.

HobbyZone’s Innovative Anti-Crash Technology

The latest breakthrough in RC flight, Anti-Crash Technology (ACT) makes teaching yourself to fly easier and safer than ever before. With ACT, anyone can fly.

Here’s how it works:

Two sensors on the Super Cub, one on the top and one on the bottom of the fuselage, monitor the position of the plane in relation to the ground. When the plane is flying level, the top sensor sees the sky, while the bottom sees the ground, and they tell the onboard computer that the plane is flying correctly. If the plane enters a dive and the sensors detect that the plane’s orientation is incorrect, the system will automatically correct the control inputs and help prevent the plane from crashing, allowing you time to regain control. ACT lets you fly without worry. And once you’ve gained experience with your Super Cub, you can turn ACT off for more complete control and increased maneuverability.

Speed Control: Power FET proportional ESC/receiver
Anti-Crash Technology: yes
Approx Flying Duration: 10–15 minutes
Available Frequencies: 6 channels on 27MHz
Charger: Variable rate 1.2A DC peak with LED and 3-hour AC Delta Peak with LED
Elevator: Proportional
Flying Weight: 26 oz (715 g)
Gear Ratio: 0.12569444444
Landing Gear: Front landing gear (foam wheels) and steerable tail wheel
Recommended Environment: Outdoor
Rudder: Proportional
Throttle: Proportional
Transmitter Range: 2500 ft
X-Port: yes
Wingspan: 47.8 in (1210mm)

???PD_PA_PART_LISTING_TITLE???

Generic Application Error Test JSP (Item)

The store has encountered a problem processing the last request. Try again later. If the problem persists, contact your site administrator.



Manuals

FAQs

Product Support Tips

Why are HobbyZone Zone 1 planes the best place to start in RC flight?

HobbyZone planes have many features that help new pilots teach themselves to fly, which is why new pilots are most successful when they start with HobbyZone. All HobbyZone Zone 1 planes feature:

- Advanced technology to help pilots be successful when learning to fly so they have fun and will hopefully get hooked on RC flight

-High-quality materials, electronics and workmanship

-Two flight modes -- flight assisting software (ACT or Smart-Trak) is either "on" to help pilots when they need it or can be shut off when they don't

-X-Port technology (in most planes) to have even more fun beyond just flying

What is the benefit of having pitch control for a new pilot as it relates to this plane?

Thanks to the incorporation of pitch into the control mix, ACT can actually recover more quickly with 3 channels than it can with a 2-channel radio system. This allows new pilots to have more control, but still benefit from the safety of having ACT working to keep them from going into a spiral dive that could lead to a crash. ACT does this by working in tandem with the 3rd channel (pitch) to reduce throttle and apply up elevator.

How does the design of the Super Cub differ from other HobbyZone planes?

Unlike any other plane in the HobbyZone line, the design of the Super Cub is unique. First of all, it is the first scale-looking plane in the HobbyZone line. Additionally, many new pilots want to start with a realistic-looking plane, so HobbyZone has created a plane that's the best of both worlds--good looks and ACT technology to help new pilots be successful. The larger wingspan helps the plane fly in a more stable manner, and makes the plane easy to see in the sky.

How does the updated design of the Super Cub, as compared to other HobbyZone Zone 1 planes, make it an improvement for pilots who are new to RC flight?

The Super Cub has a lot of physical features that make it a great plane for new pilots. It is made of Z-Foam, which is a resilient, lightweight foam that is repairable using normal CA. It helps the plane fly very true out of the box. Additionally, the Super Cub has larger control surfaces, which increase responsiveness, and it has black stripes on the bottom of the wing that help pilots keep orientation of the plane when it is in the sky. The plane also has a conventional tail design that is a first for HobbyZone. The last feature that makes the Super Cub great for new pilots is a gear-reduced motor. This gives the plane ample power for flight yet allows for longer flight times.

How does the function of pushrods differ from nylon line?

Pushrods are more durable and allow for more precise manipulation of the control surfaces.

How far away can the Super Cub fly from where a pilot is standing without him or her losing control?

The Super Cub has a radio frequency range of 2500 feet. That's equivalent to almost half a mile, so he or she will likely lose sight of the plane before control of it would be lost.

How does Smart-Trak differ from Anti-Crash Technology?

Smart-Trak uses time-based calculations to precisely adjust control surface travel so pilots can enjoy responsiveness without over-control. When the pilot flies a plane with Smart-Trak on at high throttle, Smart-Trak reduces control surface travel if it calculates the pilot is in danger of over-controlling the plane, which could cause it to enter a spiral dive. When the throttle is reduced, Smart-Trak increases control surface travel so pilots can enjoy superb responsiveness at slower speeds too. To recap on the detailed description of Anti-Crash Technology explained above, the optical sensors can "see" what is going on as it's happening. Therefore, ACT is a better product because it is acting in real-time to the plane's position, and Smart-Trak technology is reactionary because it is reacting to the pilot's input via the transmitter.

Both work toward avoiding a dive that could lead to a crash, but ACT is more active in achieving the goal of crash-avoidance.

How do the larger control surfaces aid new pilots?

Because the control surfaces are larger and have more travel, new pilots get more response from their Super Cub than they can with other HobbyZone Zone 1 planes.

Where can the Super Cub be flown?

Like all park flyer airplanes, the Super Cub should be flown in a large, open area that is free of trees, telephone poles, light poles, power lines, buildings, cars, and people, such as a large park or soccer fields. Additionally, it should be flown upwind, with the sun behind the pilot. This plane can be flown at an AMA-sanctioned RC flying field, but it doesn't have to be because of its size and speed. Just be sure to instruct pilots to keep it away from people and objects, and to make sure that they fly on channels that are not being used by other pilots.
