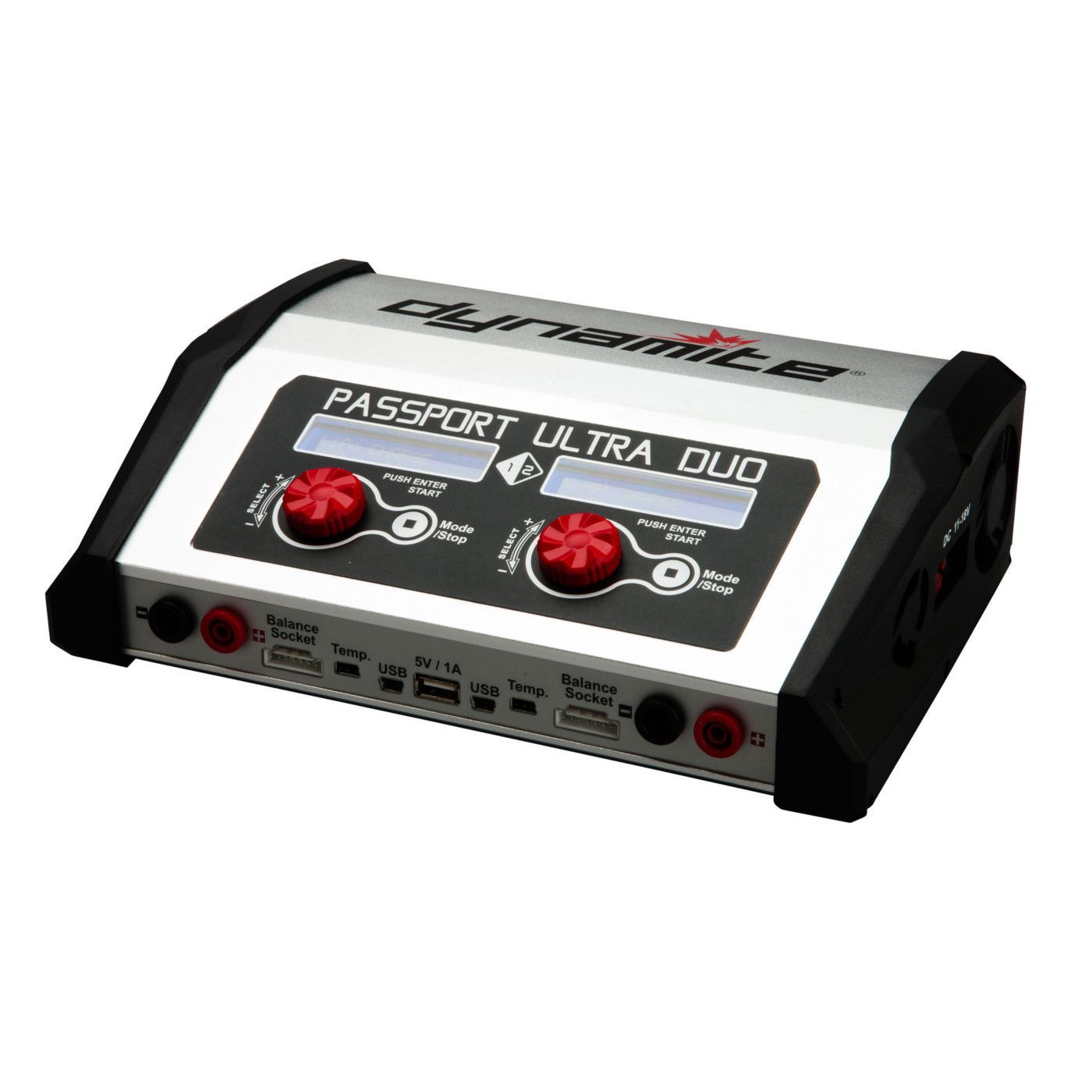

Image for Passport Duo 400W Dual AC/DC Charger from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

! Attention Canadian Customers !

This product has a Canadian Only Recall. Click Here to learn more.



Key Features

  • Internal AC power supply saves on space and doesn't require a separate external power supply
  • 100–240V AC (50/60Hz) or 11–18V DC input voltage
  • Detachable AC power cord
  • 200W charge power per output
  • 25W discharge power per output
  • Short-circuit, over-current, and reverse-polarity protection
  • Low-input voltage protection
  • Over-temperature protection
  • Battery storage mode
  • IP33CW, IK07 environmental rating
  • Includes (2) insulated banana-to-EC3™ battery adapter cables
  • Includes (2) JST-XH balance adapter boards
  • Optional high-current DC power cord available (DYN4012)
  • Charges Li-Po/Li-Fe/Li-Ion (1–6 cell), Ni-MH/Ni-Cd (1–15 cell) and Pb battery types
  • 500W internal power supply ensures that full power output is available even while utilizing both charge outputs and all USB power options
  • 0.1–10.0A adjustable charge current per output

Overview

The Dynamite® Passport™ Ultra Duo battery charger represents the pinnacle of premium, high-performance chargers. The one-of-a-kind Ultra Duo is the only 400W (200W x2) charger on the market with an internal high-capacity (500W) AC power supply. Now extremely fast charge times are possible thanks to the ability to charge at higher C rates, even on AC power! With dual 200W output capability, the Ultra Duo can charge low-to-medium capacity 3C Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, the Ultra Duo resides within the family of Dynamite Passport chargers, meaning you get the full gamut of charging features, including the ability to charge virtually all battery types, a digital dot matrix display and an easy-to-use jog dial navigation.

Ampere Meter: Yes – on main LCD display
Battery Balance Connector: JST_XH
Battery Temperature Monitoring: Yes - Temperature Sensor Not Included
Battery Type: Li-Ion/LiPo/LiFe/NiCd/NiMH/Pb
Charge Rate: 0.1 to 10.0A, 0.1 to 10.0A
Cooling Method: Multiple internal fans
Discharge: Yes
Discharge Rate: 0.1 to 5.0A, 0.1 to 5.0A
Display: LCD – 2 line x 16 characters
Input Connector: AC cord, detachable, North American plug, DC cord, detachable, alligator clips
Integrated Balancing: Y - Internal Balancer & External Adapter
Low Input Voltage Protection: Yes
Number of Cells: NiMH (1-15), LiPo (1-6), Pb (10)
Output Connector: Banana plug
Over Current Protection: Yes
PC Connectivity: Yes – USB, no external adapter required
Peak Detection: Yes
Power Input: 100-240V AC & 12V DC
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes - incremental (0.1A increments)
Short Circuit Protection: Yes
Thermal Protection: Yes
Voltage Meter: Yes – on main LCD display
