DX5e 5Ch Full Range Transmitter/Receiver only MD2
This item is no longer available, however we may have replaced them with newer versions. Please follow the link below to see the related product.
Product Description
Key Features
- Basic 5-channel 2.4GHz DSM2 radio and receiver
- Easy-to-use control for basic models
- Includes AR500 5-channel full range sport receiver
- Delta wing mixing

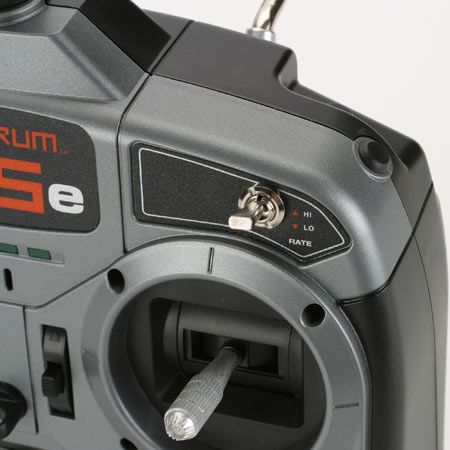

- HI/LO rates

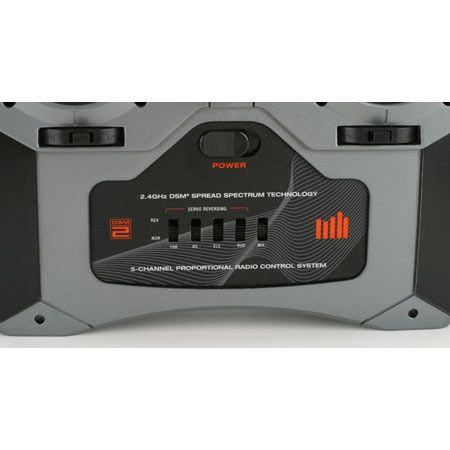

- Servo reversing

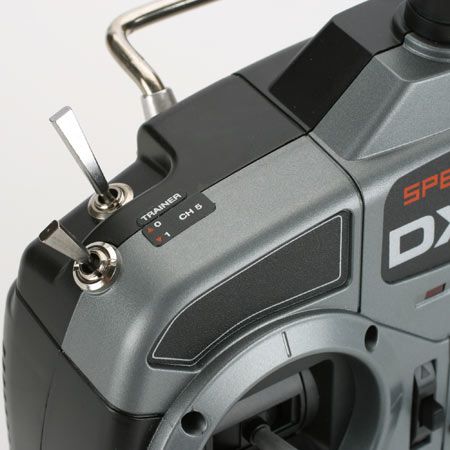

- JR and Spektrum compatible trainer system
Video Overview
Overview

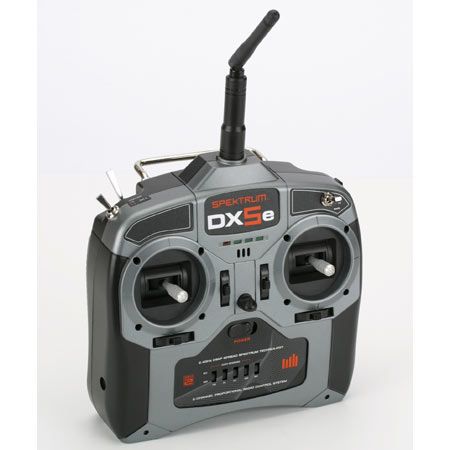

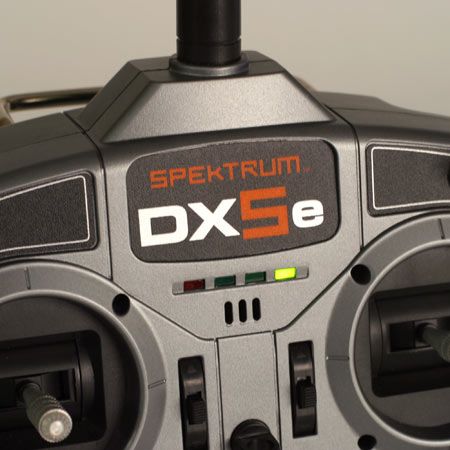

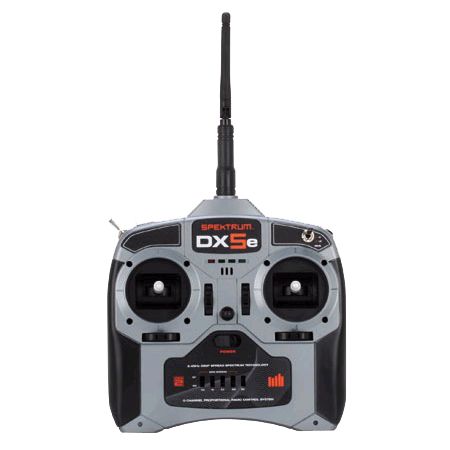

Spektrum introduces another enormous change for the RC industry—the most affordable full range 2.4GHz radio ever available. The DX5e brings together the unbeatable control of genuine DSM2 technology with the simplest, easiest-to-use design available, letting anyone, from parkfliers to students to instructors and more, take advantage of Spektrum technology for less. For a Spektrum radio and an AR500 receiver, the DX5e is the greatest value in RC, putting 2.4GHz DSM control in your hands for less than ever before.
Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or Spektrum.
Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.
PEOPLE ALSO CONSIDERED
SIMILAR ITEMS
RECENTLY VIEWED ITEMS
Specs
| Band: | 2.4GHz |
|---|---|
| Experience Level: | Beginner |
| Model Memory: | 1 |
| Model Type: | Airplane |
| Modes: | Mode 2 |
| Modulation: | DSM2 |
| Number of Channels: | 5 |
| Programming Features: | Aircraft |
| Range: | Full |
| Receiver: | AR500 5-Channel Full Range Sport Receiver |
| Servos: | N/A |
| Transmitter (Tx) Battery Type: | 4 AA Alkaline Batteries (included) |
Related Articles
Here are some articles we think will be of interest to you as you consider Horizon Hobby products. We'll add new relevant articles as they become available.
Manuals & Support
Manuals
Product Support Tips
FAQs
- Why are my servos erratic until I turn my transmitter on?
With power applied to the receiver it is looking for a signal. If the transmitter is not on it will pick up various stray radio signals(RF/noise) in your area and cause servos to appear erratic.
The cardinal rules for RC:
1. When starting, turn on the transmitter 1st and receiver 2nd.
2. When finished, turn off the receiver 1st and transmitter last.
- Is there any risk to using cellular phones in close proximity with my radio?
Absolutey not. Most cellular phones operate in 900Mhz (and above) and should have no effect on your radio's transmission or programming.
- What types of cleaning fluids are appropriate for my transmitter?
Any fuel residue can be removed using a small amount of isopropyl alcohol and a cloth. It will not affect the plastic of your transmitter. Always remove raw fuel immediately from your transmitter.
- Why do the servos shake or 'jitter' when my transmitter is close to the model?
When the transmitter is in close proximity to the receiver the modulated signal can be overdriven. This condition is referred to as "swamping." By collapsing the antenna and stepping away from the model, you should see this condition dissipate.
Make sure to perform a proper range check and then extend the antenna before operating the model.
- How should I store my Transmitter for an extended period?
When storing your TX for an extended period of time, make sure it is wiped clean from fuel or other residue. Disconnect the battery from the transmitter and store the radio in a cool, dry place.
- Why does my throttle (or other specific control surface) not respond today when I had full control yesterday?
This can happen for several reasons.
To fix:
A. Check that the travel adjust is not set at zero or low value.
B. Try switching to another model memory that hasn't been programmed and re-check to see if control has returned.
C. Check to see if servo is properly connected and/or try another servo.
- What is the maximum charge rate?
We recommend 1 amp or less. The transmitter can handle up to 2 amps for short periods of time. For the best results, please use the supplied JR wall charger.
- Why does my transmitter keep blowing fuses?
1. Damaged charge plug.
2. Polarity damage.
3. Static electricity on the charge plug.
4. Charge rate set too high
- What are the common causes of reverse polarity?
The most common reasons for reverse polarity:
1. Charger with improper connection. See your JR Radio Manual
2. Broken battery connector.
3. Altered battery leads
- What is the difference between analog and digital trims?
Analog trim transmitters use a potentiometer to vary a voltage for trim adjustment. Digital trim transmitters have micro-switches to step trim adjustment.
- Does a trainer transmitter (slave) need a battery pack?
Yes, though it is sending it's signal to the master transmitter and not transmitting on its own, the slave requires power for its circuitry that is not supplied by the master.
- Why doesn't the fuse protect against reverse polarity?
The fuse is a device to protect against overcurrent. It's not a polarized component affected by direction of current flow.
- What's the difference between PCM and FM?
FM (Frequency Modulation) uses an analog sine wave to carry data between the transmitter and the receiver. PCM (Pulse Code Modulation) uses digital encoding to transfer information between the transmitter and the receiver.
- Why isn't my repair covered under warranty?
Manufacture defects are the only issues covered under warranty. Use, abuse, reverse polarity, stripped gears, etc. are not covered.
