The Delta-V 15 69mm EDF is an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units such as the E-flite BAe Hawk 15 DF.

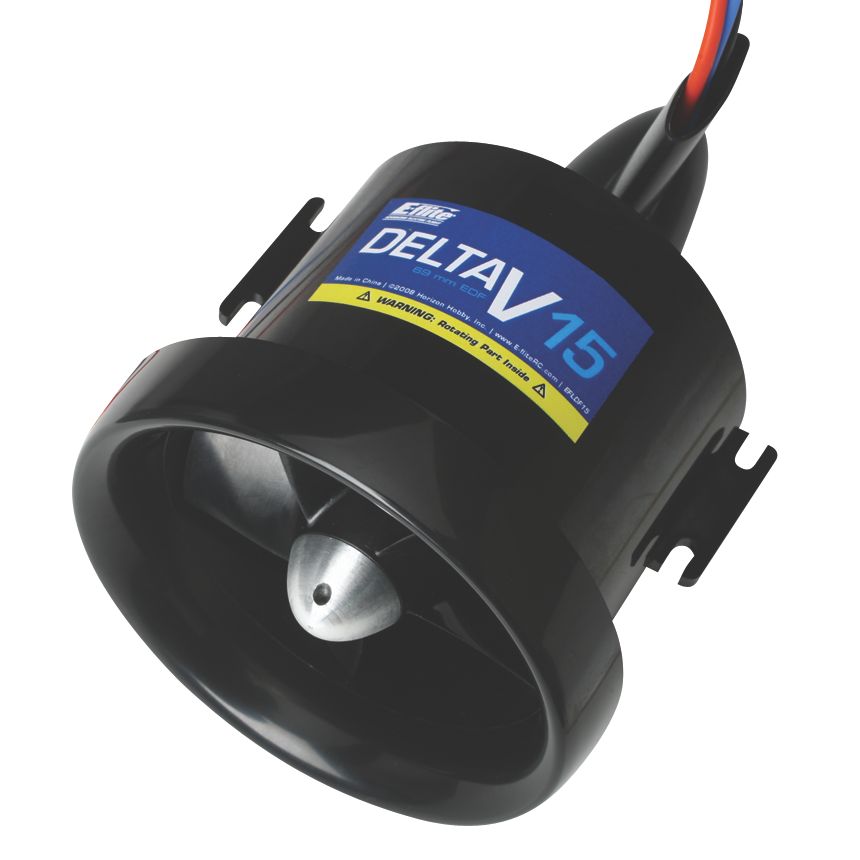

Image for Delta-V 15 69mm Electric Ducted Fan from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Key Features

  • High-performance, efficient design with quick assembly time
  • Injection molded, high strength fiberglass-filled Polyphenylene Sulfide [PPS] plastic
  • Factory-balanced 69mm 5-blade rotor design and aluminum spinner
  • Includes center body fairing to reduce drag
  • Designed for 3S-4S Li-Po batteries
  • Can accept motors with 28mm diameter
  • Purpose-built for recommended E-flite BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF)

Needed To Complete

E-flite 60A Pro SB Brushless ESC
E-flite BL15 Ducted Fan Brushless Motor, 3600Kv

E-flite 3S 11.1V 3200mAh Li-Po or
Thunder Power 3S 11.1V 3300mAh Li-Po or
Thunder Power 4S 14.8V 2600mAh Li-Po

Overview

E-flite's Delta-V 15 69mm EDF (EFLDF15) electric ducted fan unit is an ideal choice for products such as E-flite’s BAe Hawk 15 DF and other similar sized ducted fan airplanes. The Delta-V 15 69mm EDF is also an ideal choice for ducted fan airplanes requiring 68-70mm diameter fan units. The BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF) is purpose-built for this Delta-V 15 69mm EDF and both products will provide great performance.

Specifications:
Rotor Diameter: 69mm (2.7 in)
Shroud Outer Diameter: 73.5mm (2.9 in)
Shroud Length: 58.3mm (2.3 in)
Shroud Length (Including Intake Ring): 72mm (2.8 in)
Center Body Inside Diameter: 28.3mm (1.1 in) – designed for 28mm motor
Overall Weight: 88g (3.1 oz)


Performance Data (Measured using BL15 DF Brushless Motor)

Recommended Motor: BL15 Ducted Fan Brushless Motor, 3600Kv (EFLM3015DF)
Static Thrust: 1.7 lbs on 3S (11.1V); 2.8 lbs on 4S (14.8V)
RPM: 31,000 on 3S (11.1V); 40,000 on 4S (14.8V)
Velocity: 71 mph on 3S (11.1V); 102 mph on 4S (14.8V)
Watts: 305 on 3S (11.1V); 644 on 4S (14.8V)
Current: 29A on 3S (11.1V);46A on 4S (14.8V)
