These shocks feature the same race proven shock technology that is used on the World Champion 1/10 scale models. The shock bodies are hard-coated and the shafts are Titanium Nitrided for both wear resistance and smooth operation. A miniature version of Losi’s user-friendly pre-assembled shock cartridge is used for quick and easy maintenance.

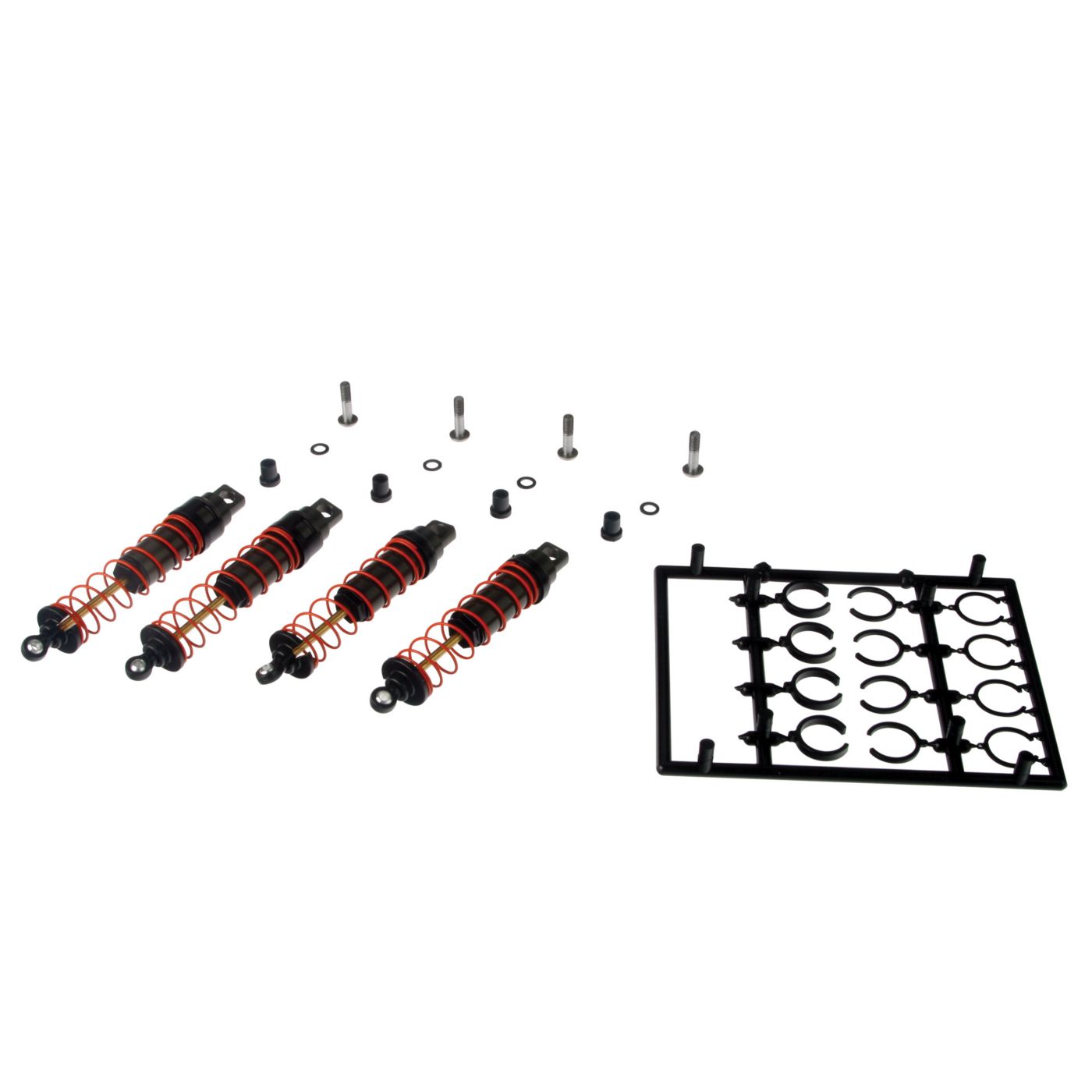

The LOSB1110 Shock Set includes two front and two rear shocks pre-assembled with springs and ready for the fluid of your choice. A complete set of mounting hardware, a huge assortment of preload shims, and two optional pistons are included to make mounting and tuning easy. Replacement parts are available separately as well as front and rear spring sets.
When using the LOSB1110 shock set with Losi's Mini Desert Buggy (LOSB0204), a small modification will be required:

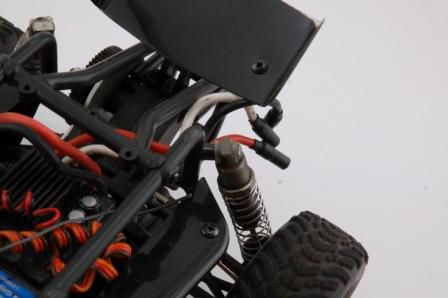

Use a small piece (about 0.25 inch) of fuel tubing in the top eyelet of the shck, and then screw into the cage like usual. Refer to the the image below to see how the modified shock will look when mounted.
If you recently purchased the Team Losi Racing Shock set for the Mini T, you might be wondering what a few of the extra washers and spacers included in the kit are used for. Your kit included 8 small washers. 4 washers are used on the front caster block ball stud. Using 2 on each side, space the brass ball stud out to provide clearance for the tie-rods. The extra 4 washers you have left over are spares or can be used for tuning. You can use them to limit the travel in the shocks or to raise the inner ball stud on the front bulkhead. Also note the direction of the shock bushing. The larger end should be up against the shock tower on the front shocks only. When mounting your Oil filled shocks on the rear of you Mini-T, be sure to install the shock bushing with the narrow side first. You have also received 4 extra shock seals. These can be used as spares or you can "double-up" the seals installed on your shock cartridge. This will help eliminate chances of oil leaking.
