Forward/Brake with Reverse or Forward/Brake settings
Sintered neodymium rotor
100A continuous current with 540A peak
Losi EC3 power connector pre-wired
High-speed cooling fan for lower running temperatures and protection
Low voltage cutoff to protect your investment
Four LEDs to indicate functions
Two preset drive profiles with unlimited potential with a PC
Powerful, high-speed brushless motor
Precision motor ball bearings for smoother operation
No motor maintenance required

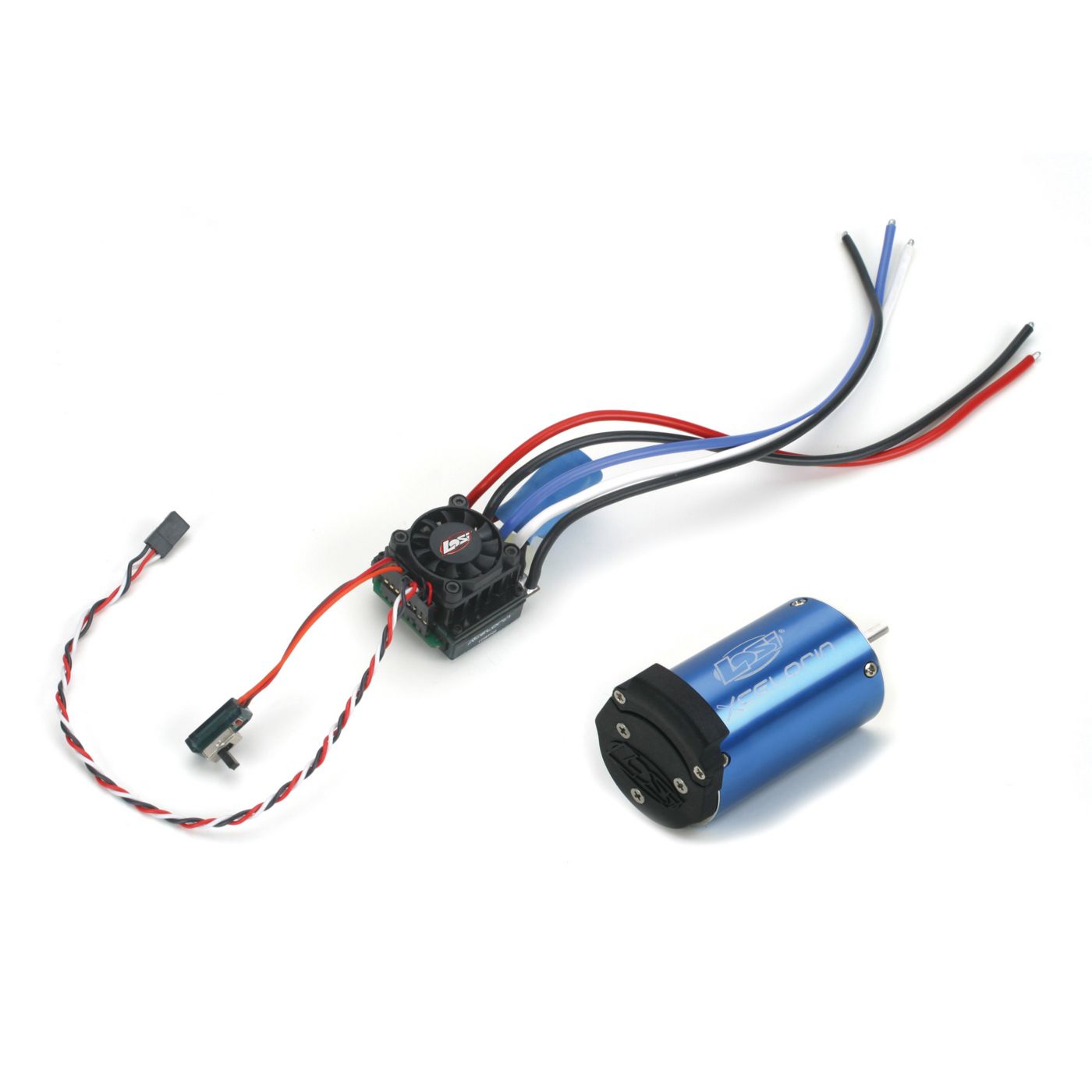

Xcelorin brushless systems from Losi represent the latest development in brushless power and performance. The 1/10 Xcelorin Motors and ESCs offer features and specifications desired by electric RC enthusiasts. The ESC features a pre-wired high-speed cooling fan, low voltage cutoff protection, multiple programming options and much more. The motor features low-profile solder tabs with a protective cover, precision ball bearings for smooth operation, sintered neodymium rotors, and best of all requires no motor maintenance. For higher speeds and longer run times, look to Losi and Xcelorin brushless systems.
ESC Specs Type: Sensorless Brushless Forward: Y Reverse: Y Brake: Y Time Delay Brake: Y Throttle Limiting: Y (adjustable in 10% steps) Programmable: Full (via quick program card or PC) Continuous Maximum Current: 100A Momentary Peak Current: 540A Input Connector Types: Losi EC3 style Dimensions (WxLxH): 1.16 x 1.54 x 1.3 in (29.5 x 39 x 33.2mm) Weight: 1.7 oz (48 g) BEC Voltage: 6.1V, 3A PWM Frequency: Optimized for Spektrum or traditional radio systems
Motor Specs Type: Sensorless Brushless Size: 540 Bearings or Bushings: Precision ball bearings Voltage: NiMH 6-12-cell; LiPo 2-3-cell RPM/Volt (Kv): 7500Kv Weight: 6.35 oz (180 g) Overall Diameter: 1.4 in (35.8mm) Shaft Diameter: 0.125 in (3.17mm) with flat Shaft Length: 0.18 in (4.6mm) Overall Length: 2.15 in (35.8mm)
Disconnect the battery from the speed controller before connecting the Xcelorin USB adapter to the speed controller. Failure to do so may result in DAMAGE TO YOUR COMPUTER.
