Increases speed and longer run times over stock mini electronics
Two way setup: Programming card for multiple profiles and USB PC interface for unlimited profiles
25-Amp power rating with a 35A peak (5 seconds)
Low voltage cutoff to protect your investment
Pre-wired Losi mini vehicle plug for power connection
Gold-plated motor connectors for effective power transfer
Precision ball bearings for smooth operation
The speed control has reverse, but it can be locked out for racing

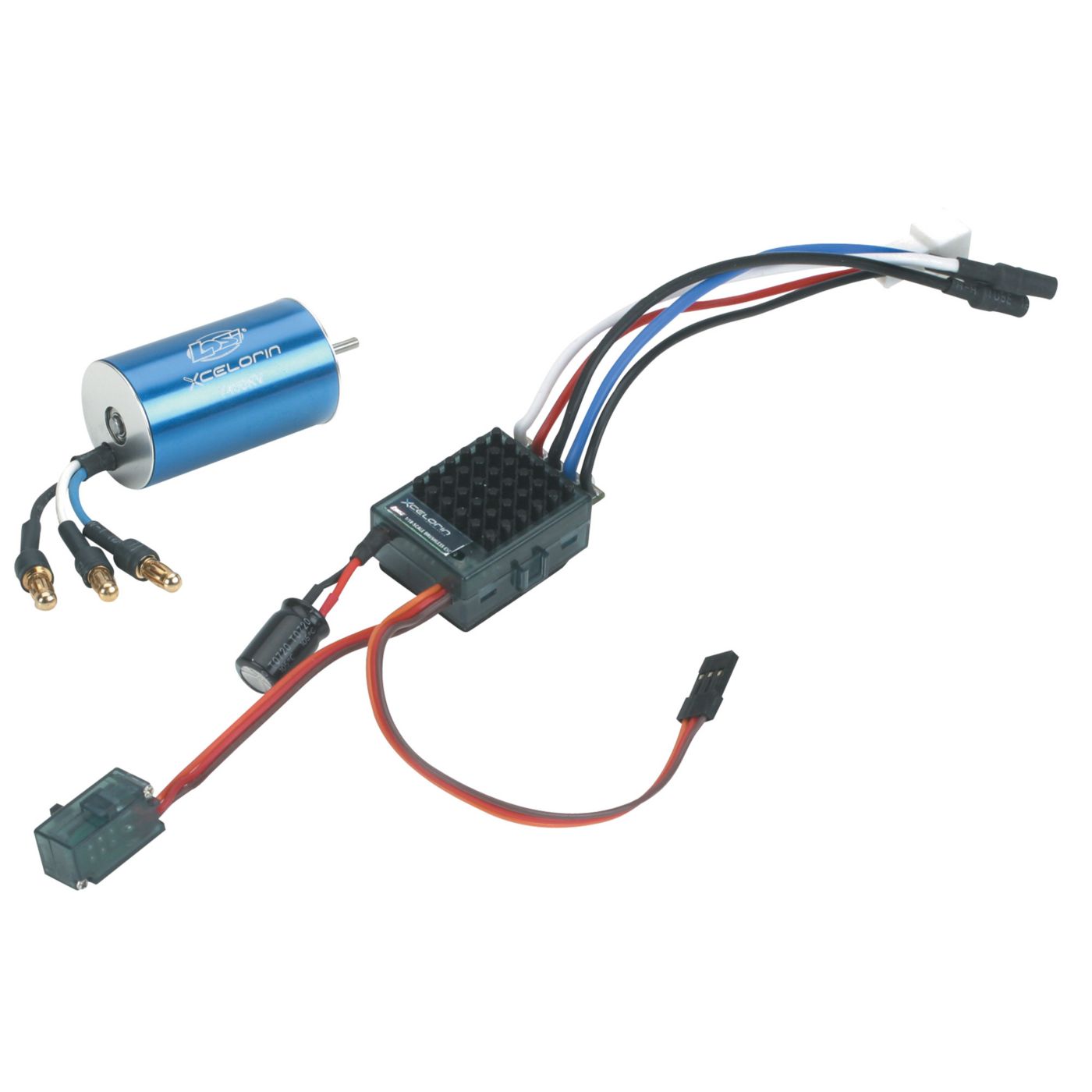

Xcelorin brushless systems from Losi represent the latest development in brushless power and performance. The 1/18 Xcelorin Motors and ESCs offer features and specifications desired by electric RC enthusiasts. The ESC features a pre-wired Losi mini connector, low voltage cutoff protection and multiple programming options. Gold-plated connectors ensure that the power from the battery is efficiently and effectively transferred to the brushless motor via the 25-amp 1/18 Xcelorin ESC. The motor also features pre-wired gold connectors, precision ball bearings for smooth operation, sintered neodymium rotors, and best of all requires no motor maintenance. For higher speeds and longer run times for your mini vehicle, look to Losi and Xcelorin brushless systems.
ESC Specs Forward: Y Reverse: Y Brake: Y Continuous Maximum Current: 25A Input Connector Types: Losi mini vehicle power connector Output Connector Types: 2mm gold-plated bullet connectors Momentary Peak Current: 35A (5 seconds) Dimensions (WxLxH): 1.16 x 1.54 x 0.9 in (29.5 x 39 x 23mm) Weight: 0.9 oz (28 g) BEC Voltage: 5.0V / 2A Overload Protection: Y
Motor Specs Type: Brushless Size: 280 Bearings or Bushings: Precision ball bearings RPM/Volt (Kv): 7400Kv Cells: 2-3 LiPo; 6-12 NiMH Weight: 1.87 oz (53 g) Overall Diameter: 1.4 in (36mm) Shaft Diameter: 0.078 in (2.0mm) with flat Shaft Length: 0.39 in (10mm)
Disconnect the battery from the speed controller before connecting the Xcelorin USB adapter to the speed controller. Failure to do so may result in DAMAGE TO YOUR COMPUTER.
