Equivalent to a 15-size glow engine for sport and scale airplanes weighing 36–56 oz (1020–1590 g)
Ideal for 3D airplanes weighing 32–40 oz (910–1135 g)
Ideal for models requiring up to 575 watts of power
High-torque, direct-drive alternative to inrunner brushless motors

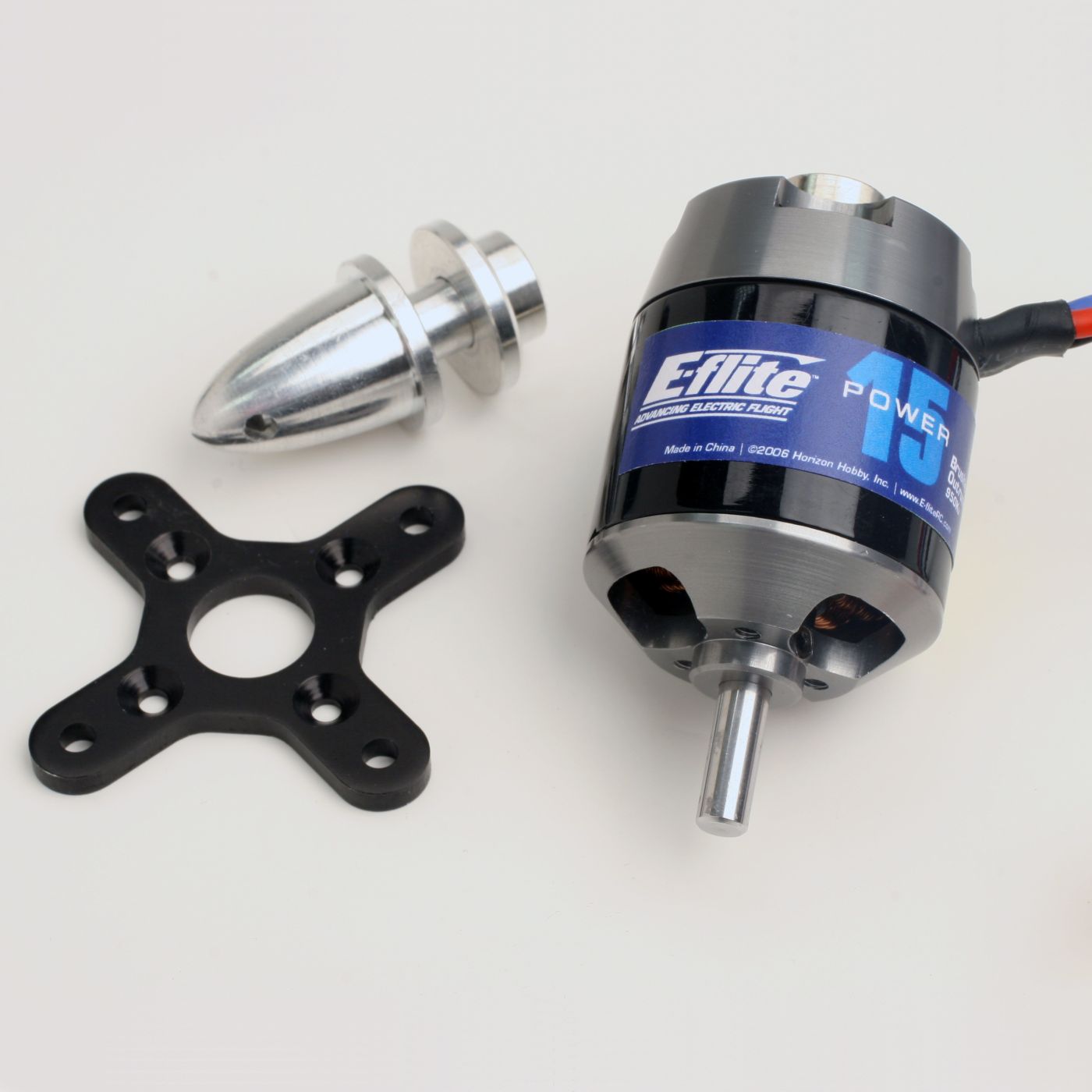

Includes mount, prop adapters and mounting hardware
External rotor design—5mm shaft can easily be reversed for alternative motor installations
Slotted 14-pole outrunner design
High-quality construction with ball bearings and hardened steel shaft
Quiet, lightweight operation
Needed To Complete
40A–45A brushless ESC
8-to 12-cells Ni-MH/Ni-Cd or 3–4S Li-Po
10x6 to 13x6.5 electric prop
The Power 15 is designed to deliver clean and quiet power for 15-size sport and scale airplanes weighing 36 to 56 ounces (1020 to 1590 grams), 3D airplanes weighing 32 to 40 ounces (910 to 1135 grams), or models requiring up to 575 watts of power.
Bearings or Bushings:
One 5 x 14 x 5mm Bearing and One 5 x 11 x 5mm Bearings
1. Power can be measured in watts. For example: 1 horsepower = 746 watts 2. You determine watts by multiplying ‘volts’ times ‘amps’. Example: 10 volts x 10 amps = 100 watts
Volts x Amps = Watts
3. You can determine the power requirements of a model based on the ‘Input Watts Per Pound’ guidelines found below, using the flying weight of the model (with battery):
• 50-70 watts per pound; Minimum level of power for decent performance, good for lightly loaded slow flyer and park flyer models • 70-90 watts per pound; Trainer and slow flying scale models • 90-110 watts per pound; Sport aerobatic and fast flying scale models • 110-130 watts per pound; Advanced aerobatic and high-speed models • 130-150 watts per pound; Lightly loaded 3D models and ducted fans • 150-200+ watts per pound; Unlimited performance 3D and aerobatic models
NOTE: These guidelines were developed based upon the typical parameters of our E-flite motors. These guidelines may vary depending on other motors and factors such as efficiency and prop size.
4. Determine the Input Watts Per Pound required to achieve the desired level of performance:
Model: 15-size 3D ARF Estimated Flying Weight w/Battery: 2.4 lbs Desired Level of Performance: 150-200+ watts per pound; Unlimited performance 3D and aerobatics
2.4 lbs x 150 watts per pound = 360 Input Watts of total power (minimum) required to achieve the desired performance
5. Determine a suitable motor based on the model’s power requirements. The tips below can help you determine the power capabilities of a particular motor and if it can provide the power your model requires for the desired level of performance:
• Most manufacturers will rate their motors for a range of cell counts, continuous current and maximum burst current. • In most cases, the input power a motor is capable of handling can be determined by:
Average Voltage (depending on cell count) x Continuous Current = Continuous Input Watts
Average Voltage (depending on cell count) x Max Burst Current = Burst Input Watts
HINT: The typical average voltage under load of a Ni-Cd/Ni-MH cell is 1.0 volt. The typical average voltage under load of a Li-Po cell is 3.3 volts. This means the typical average voltage under load of a 10 cell Ni-MH pack is approximately 10 volts and a 3 cell Li-Po pack is approximately 9.9 volts. Due to variations in the performance of a given battery, the average voltage under load may be higher or lower. These however are good starting points for initial calculations.
Model: 15-size 3D ARF (converted to electric) Estimated Flying Weight w/Battery: 2.4 lbs Total Input Watts Required for Desired Performance: 360 (minimum)
Motor: Power 15 Max Continuous Current: 34A* Max Burst Current: 42A* Cells (Li-Po): 3
3 Cells, Continuous Power Capability: 9.9 Volts (3 x 3.3) x 34 Amps = 336 Watts 3 Cells, Max Burst Power Capability: 9.9 Volts (3 x 3.3) x 42 Amps = 415 Watts
Per this example, the Power 15 motor (when using a 3S Li-Po pack) can handle up to 415 watts of input power, readily capable of powering the 15-size 3D model with the desired level of performance (requiring 360 watts minimum). You must however be sure that the battery chosen for power can adequately supply the current requirements of the system for the required performance.
Expect average speeds and higher thrust -ideal for F3A and extreme power for 3D and artistic aerobatics. Longer duration is approximately 15-18 minutes depending on throttle management.
