Ultra Micro Fun Anytime, Anywhere Indoors

Categories

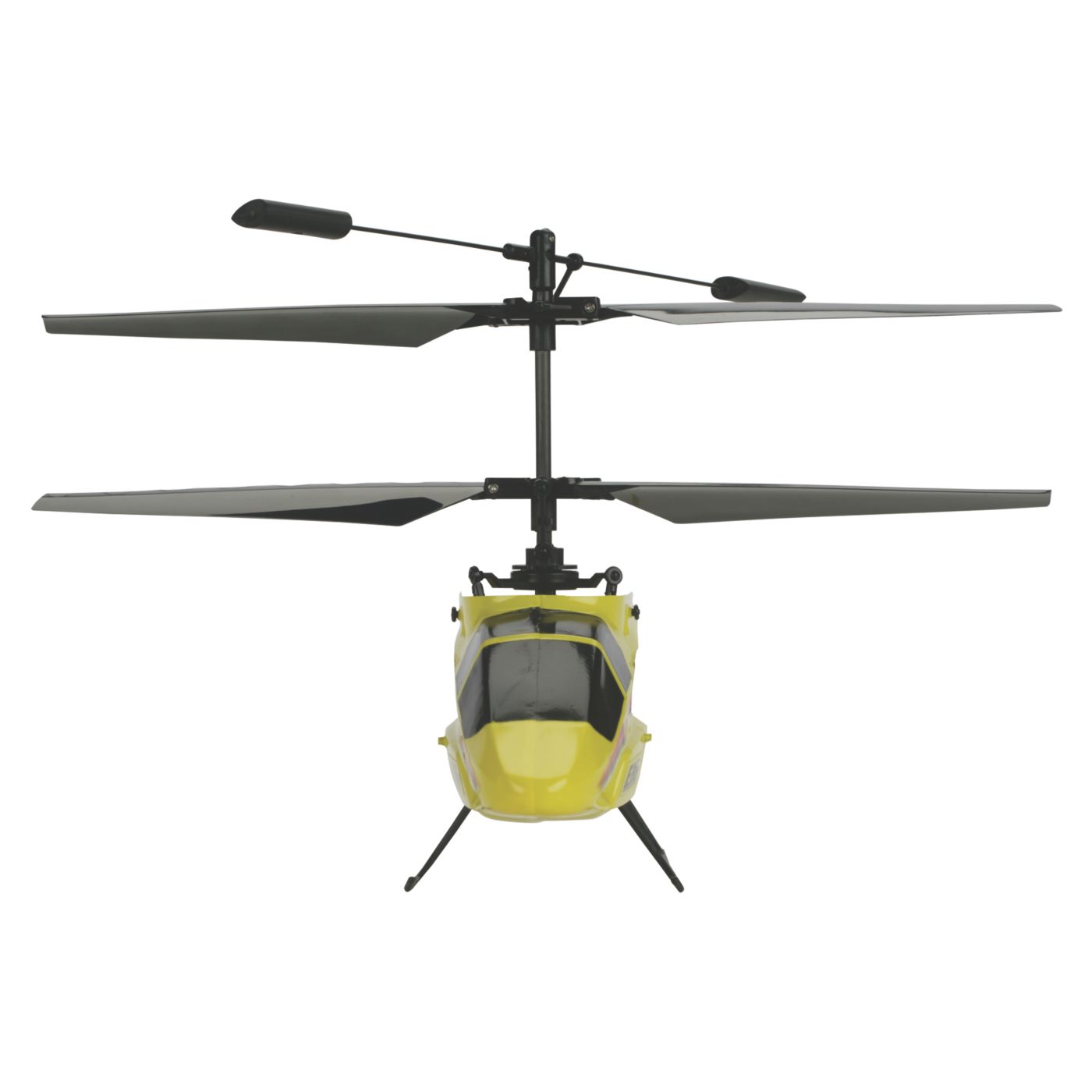

Image for Blade mCX RTF from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Click Here to Learn More!

Key Features

  • NOTE: Airfoil shaped flybar weights shown in our images are not included. Round flybar weights (as seen here) are installed on this heli
  • 100% factory-assembled, test-flown and ready-to-fly right from the box
  • Includes everything needed to fly—there's nothing extra to buy
  • Ultra micro size and weight perfect for indoor flying
  • Innovative airframe design and electronic components offer incredible durability and precise control for excellent manueverability
  • Coaxial, counter-rotating rotor head design for unsurpassed stability and ease of flight
  • 4-channel transmitter equipped with Spektrum™ 2.4GHz DSM2® technology, digital trims and dual rates
  • Factory-installed 5-in-1 control unit with Spektrum 2.4GHz DSM2 compatible receiver, main motor ESCs, mixer, gyro and fully-proportional servos
  • This model is one of the many available for the Phoenix RC Flight Simulator
  • >

Video Overview

Overview

The Blade® mCX heli is an ultra micro-size version of the Blade CX/CX2 heli, offering first-time pilots the ability to learn how to fly with ease and experienced heli pilots the ability to fly anytime, anywhere indoors. The Blade mCX heli offers unsurpassed stability and incredible control through the coaxial, counter-rotating head design and Spektrum™ 2.4GHz DSM2® control. And, thanks to its rotor span of just 7.5 inches and one-ounce flying weight, the Blade mCX heli can be flown indoors almost anywhere—from an office to a small bedroom or living room.

The Blade mCX heli comes 100% factory-assembled, flight-tested and ready-to-fly right out of the box—no assembly or setup required. Included in the box is the Li-Po battery and convenient AA battery-powered DC Li-Po charger, 4-channel transmitter equipped with Spektrum 2.4GHz DSM2 technology and 8 AA batteries (4 for the transmitter, 4 for the charger). The DSM2 technology offers freedom from frequency restrictions and allows the Blade mCX heli to be flown anywhere, anytime indoors with precise 4-channel control.

When it comes to ultra micro heli fun everyone can enjoy, you simply can’t beat the value and performance of the Blade mCX. It’s just another way E-flite is advancing electric flight.

Also available in a Bind-N-Fly® version (EFLH2280).

Motor Size: Micro Coreless (2 installed)
Completion Level: Ready-to-Fly
Gross Weight: 1.0 oz (28 g) with battery
Is Assembly Required: No
Main Rotor Diameter: 7.5 in (190mm)
Recommended Environment: Indoor
Rotor Type: Coaxial
Size/Scale: Ultra Micro

Parts Listing

Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
$2.49
In Stock
Add to Wish List
Add to Wish List
Add to Wish List
$1.49
This item is no longer available
Unavailable
Add to Wish List
 $9.99 $11.99
In Stock
Add to Wish List
Add to Wish List
Add to Wish List
$3.99
In Stock
Add to Wish List
$4.99
In Stock
Add to Wish List
$3.49
This item is no longer available
Unavailable
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
 $19.99 $23.99
This item is no longer available
Unavailable
 $42.49 $49.99
This item is no longer available
Unavailable
Add to Wish List
$6.99
In Stock
Add to Wish List

Hop Ups

Add to Wish List
Add to Wish List
Add to Wish List
 $16.14 $16.99
In Stock
Add to Wish List
Add to Wish List

Optional Accessories

 $3.99 $5.49
In Stock
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
Add to Wish List
$8.99
This item is no longer available
Unavailable
Add to Wish List
$1.49
This item is no longer available
Unavailable
Add to Wish List
 $6.99 $9.99
This item is no longer available
Unavailable
Add to Wish List
 $14.99 $18.99
In Stock
Add to Wish List
Add to Wish List
Add to Wish List

Manuals

FAQs

Product Support Tips

Why is my light is staying red even with the battery disconnected?

Try new AA batteries in the charger.

Why is my helicopter doing small circles on its own?

You should check for binding in the upper rotor head.

Why is my Transmitter not controlling my mCX?

Try binding the transmitter to the reciever again. Page 26 of your manual.

Why does my mCX drift?

You may need to adjust your linkage. If your mCX is drifting left or right you may need to adjust the left linkage (when standing behind the heli in flight) connected to the lower swashplate. If you are drifting forward or backwards you may need to adjust the right linkage.

I bound my E-flite LP5DSM transmitter to my mCX but the controls are backwards.

Be sure all of the dip switches on your LP5DSM transmitter are in the down position other then switch 1 & 8. Switches 1 & 8 should be the only switches in the up position.

Everything works but it will not throttle up. The motors do not spin at all?

Make sure the throttle trim is all the way down so the ESC can arm itself correctly.

Tail Twitching in hover or forward flight

Possible fix:

Adjust Gyro gain slightly or add double sided tape on the front landing gear tabs to help isolate the body from motor vibration. This should solve this issue.

Tail Drifting after 1-2 minutes of flight

Possible fix:

Land the Heli then center the rudder trim and re-initialize the 3-in-1 unit.  Drifting is caused by the change in battery voltage during flight operation.

Remote LED light set will not function

Possible fix:

Make sure it is properly connected into channel 5 of the AR6100 receiver.  When using the LP5DSM transmitter turning the 5th channel knob clockwise or counter-clockwise will switch the lights on and off.  On other transmitters be sure to set the travel adjustment to +/- 100%

The CX3 3-in-1 unit LED continues to flash the RED LED

Possible fix:

Check to make sure that the transmitter throttle stick and throttle trim lever are completely DOWN, then re-initialize the 3-in-1 unit.

The transmitter is on and the flight battery is connected but still no control

Possible fix:

Cycle the transmitter power and re-initialize the 3-in-1 unit.  Move the transmitter about 3 feet from the helicopter and make sure the antenna is not pointing directly at the Heli.

If the problem persists, re-bind the receiver to the transmitter.
