Add reliable performance to any aircraft with E-flite's High-Power 3-cell LiPo battery pack.

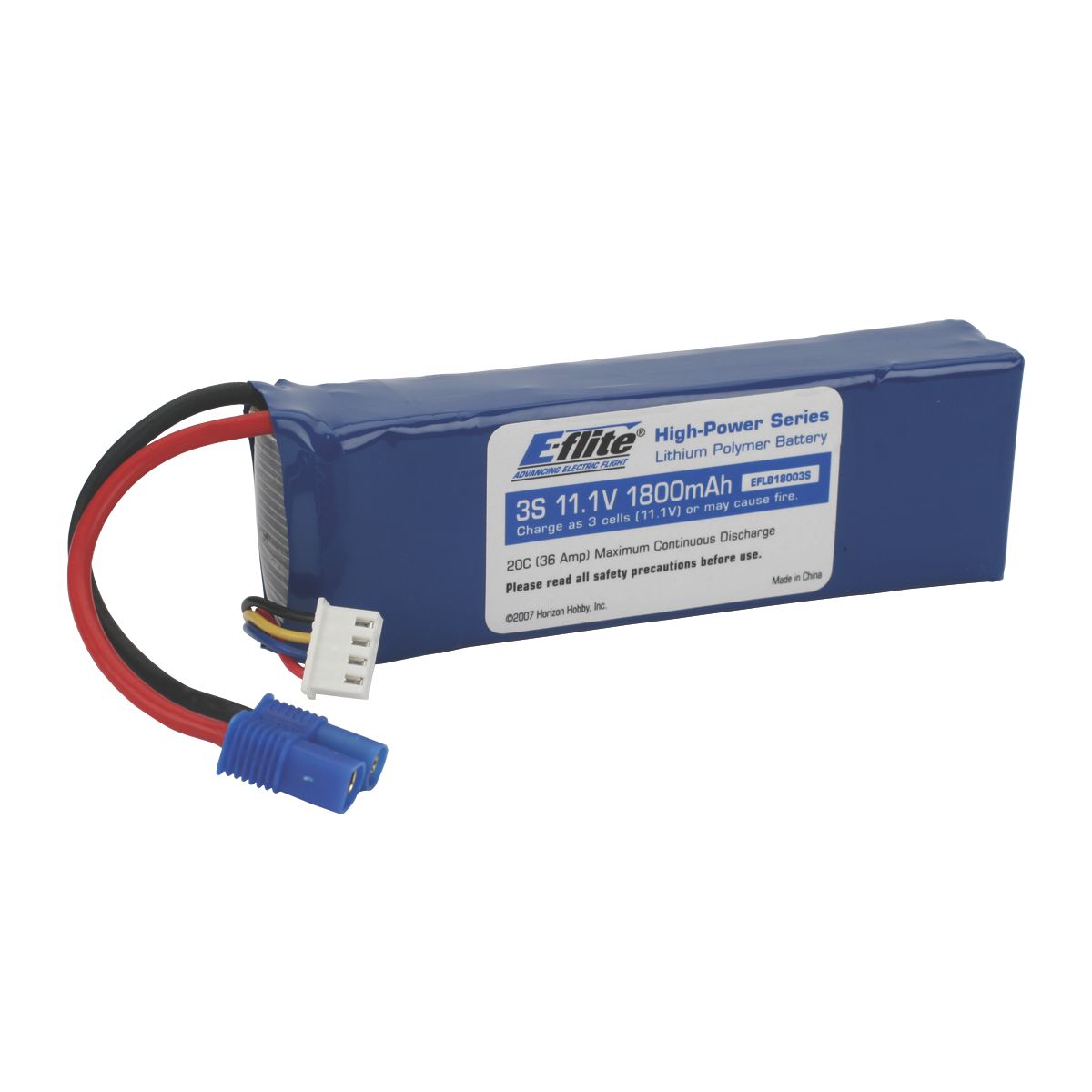

Image for 1800mAh 3S 11.1V 20C LiPo, 13AWG EC3 from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Key Features

  • Capable of maximum continuous discharge rates up to 20C, placing this battery among the most powerful LiPo battery packs in its class
  • Equipped with balancing leads and connectors that are compatible with most balancers and balancing chargers*
  • Equipped with E-flite® EC3 connector on main power leads
  • Plug-and-play use with E-flite ESCs and chargers right out of the package
  • *Please see instructions for more information

Overview

E-flite High-Power Lithium Polymer batteries offer an excellent blend of weight, power and performance. Available in a wide variety of capacities and voltages, there’s a battery perfect for almost any application from indoor slow flyer to large-scale sport and aerobatic airplane models, as well as micro to mid-sized helicopter models.

WARNING: Lithium Polymer (LiPo) batteries are significantly more volatile than the alkaline, Ni-Cd or Ni-MH batteries used in RC applications. All instructions and warnings found on the inside of this card must be followed exactly. Mishandling of LiPo batteries can result in fire.

By handling, charging or using this LiPo battery you assume all risks associated with LiPo batteries. If you do not agree with these conditions, return this LiPo battery in new, unused condition to the place of purchase immediately.

Battery Type: LiPo
Configuration: 3S
Connector Type: EC3
Number of Cells: 3
Voltage: 11.1V
Wire Gauge: 13

Optional Accessories

Manuals

FAQs

LI-PO Do's and Don'ts

DO: Use a charger that is specifically designed to charge Li-Po batteries. Using chargers that are not Li-Po-specific can be an extreme fire hazard.

DO: Li-Pos don't develop memory or voltage depression characteristics like Ni-Cds. Charge them without the worry of cycling or discharging them first.

DO: Store Li-Pos at least partially charged. Li-Pos will maintain their performance levels over time, even during non-use, much better than Ni-Cds, and there's no need to cycle them.

DON'T: Never fully discharge your Li-Po battery pack. Most electronic speed controls have a voltage cutoff that will prevent over-discharging the battery, but were designed for Ni-Cd & Ni-MH batteries. Be sure that your ESC features the proper Li-Po cut off voltage of 3V per cell (6V for 2-cell packs, 9V for 3-cell packs and so on). Discharging a Li-Po cell beyond its critical minimum voltage will cause damage to the battery.

DON'T: Shorting a Li-Po pack for even an instant can cause damage to the battery. Whether the pack has been shorted when new, while adding or changing the connector, when fully charged or fully discharged, the pack should not be charged without extreme caution. Be sure to take care when soldering connectors and during handling or charging to prevent shorts.

DON'T: If you have a crash and the battery is damaged, don't put the battery in your car or house immediately after a crash. It's possible that a chemical reaction can take place in the damaged battery that could cause a fire. Put the battery in a safe place for at least one hour.

What is a typical Li-Po pack's voltage?

Li-Po packs are available in 2- and 3-cell varieties (Thunder Power packs are also available in 4-cell and 5-cell models). Each cell in the pack has a nominal voltage of 3.7V and multi-cell packs are wired in series.

2-cell pack = 7.4V

3-cell pack = 11.1V

4-cell pack = 14.8V

5-cell pack = 18.5V

What is the "C" rating for?

A "C" or "current" rating indicates the maximum recommended average discharge current for that pack and is used to help you determine the maximum discharge rate. To determine the maximum discharge rate, multiply the "C" rating by the pack capacity (i.e. 1900mAh cell x 6C rating = maximum discharge rate of 11,400mA or 11.4A).

What is the "S" number for?

The "S" number indicates the number of cells in series. For instance, 2S indicates a 2 series (2-cell) pack.

What is the "P" number for?

Larger packs use the "P" number to indicate the number of cells in parallel. For instance 3S2P indicates the pack is built with 2 cells in parallel, then 3 sets of the 2 parallel cells are joined in series.

Can I use my regular peak charger to charge Li-Po packs?

Li-Po batteries require a very different charge method than Ni-Cd or Ni-MH cells and can catch fire if charged with a standard, non-Li-Po charger. Li-Po batteries do not "peak" when fully charged and require a "constant current/constant voltage" capable charger.

Why are some models available with or without a JST connector?

JST connectors have become the standard on many electronic speed controls and chargers for slow flyer and park flyer applications. While it's true that the JST connector does have a discharge output limitation, it is still the first choice of beginning modelers or those who do not discharge at very high rates.
