Cap 232 BP ARF
Product Description
To view the terms and conditions Click Here.
Key Features

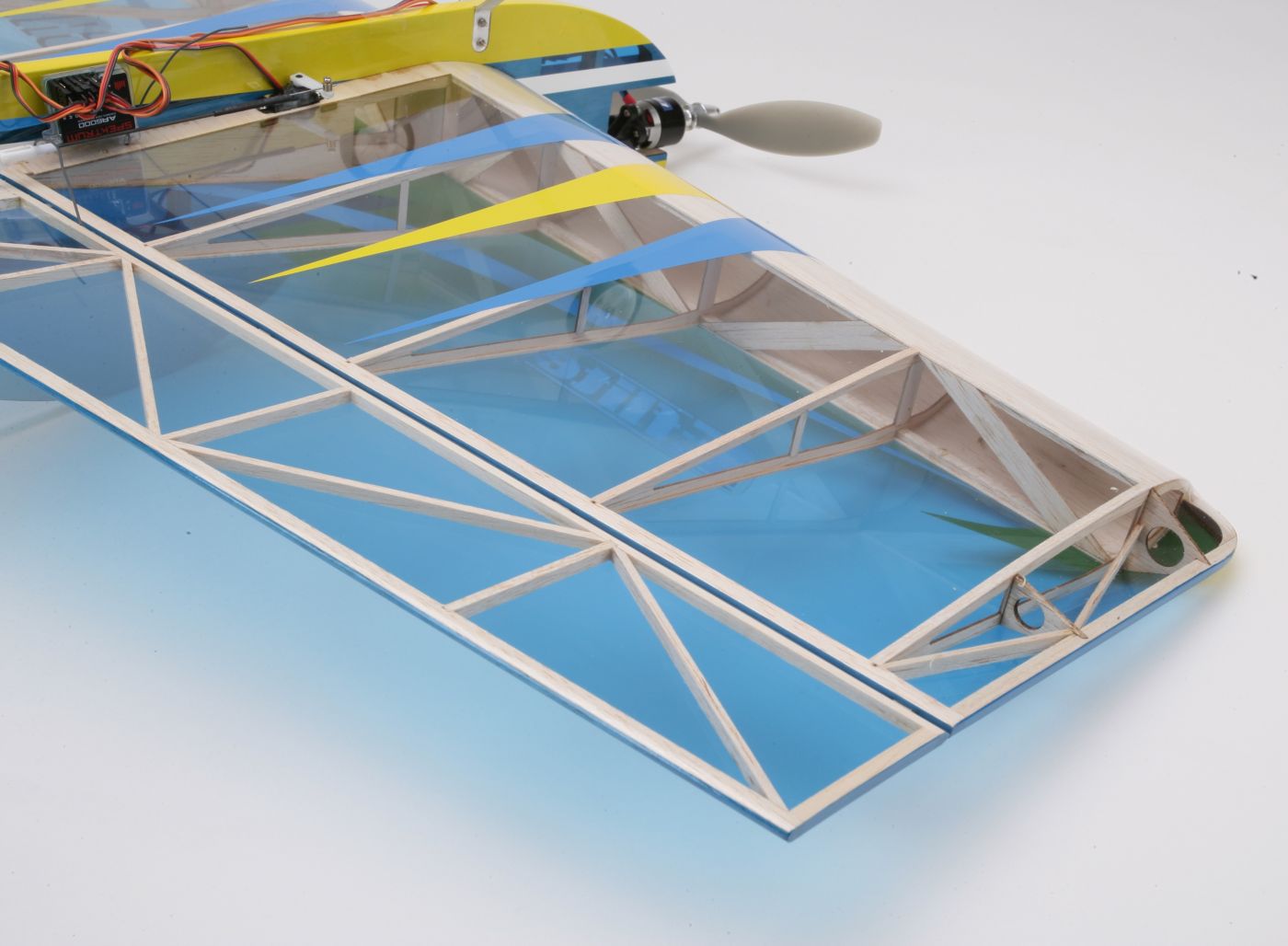

- Ingenious open-structure balsa and light plywood design minimizes weight and maximizes strength
- Light wing loading and large control surfaces for astonishing freestyle and 3D capability
- 90% factory-built and covered in genuine UltraCote
- Carbon fiber pushrods
- All hardware and an Outrunner Stick Mount are included
- Out-of-the-box compatibility with E-flite outrunner or inrunner brushless motors
Needed To Complete
6-channel transmitter (for proper mixing and dual rate capabilities)
Micro receiver
4 sub-micro servos
Motor
20A Brushless ESC
11x3.8 Slow Flyer Prop
Battery & Charger
Overview

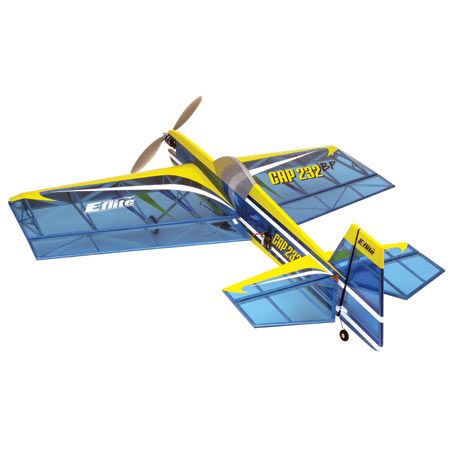

The Cap 232 BP 3D combines the sturdy construction of a balsa and light plywood airframe with the uninhibited 3D capability of a lightweight profile park flyer. It’s all made possible by its intelligently engineered, open structure design that keeps weight to a bare minimum while providing all the structural integrity of a real wood airframe. This feather-light construction, combined with a high-output brushless motor, will provide spine-tingling 3D and freestyle performance that will let you really push the limits. And it comes from the factory 90% built and covered in genuine UltraCote® and UltraCote Lite so you can be up and flying in no time.
PEOPLE ALSO CONSIDERED
SIMILAR ITEMS
RECENTLY VIEWED ITEMS
Specs
| CG (center of gravity): | 4-3/4 in (120mm) back measured from the center of the leading edge of the wing next to the fuselage |
|---|---|
| Control Throw (Ailerons): | 1.25" (32mm) with 20% Expo on Low or 1.75" (45mm) with 43% Expo on High Up/Down |
| Control Throw (Elevator): | 2" (50mm) with 20% Expo on Low or 3" (75mm) with 49% Expo on High Up/Down |
| Control Throw (Rudder): | 3" (75mm) Low & High Left/Right |
| Experience Level: | Advanced |
| Flying Weight: | 15.5-17 oz (440-480 g) |
| Fuel Type: | Electric |
| Hardware Included: | Yes |
| Motor Size: | Park 450 or Park 400 |
| Overall Length: | 35.5 in (900mm) |
| Plane Type: | Aerobatic & 3D |
| Power Plant Size : | 300-400 Electric |
| Prop Size: | 11x3.8 Slow Flyer |
| Radio: | 6 channels (for proper mixing) |
| Recommended Battery: | 11.1V 3-cell 910-1320mAh Li-Po |
| Recommended Environment: | Outdoor |
| Servos: | 4 sub-micro |
| Speed Control : | 20A Brushless |
| Trim Scheme Colors: | UltraCote White (HANU870) Sky Blue (HANU875) Bright Yellow (HANU872) UltraCote Lite Transparent Blue (HANU969) UltraCote Lite Transparent Clear (HANU964) |
| Wing Area: | 425 sq in (27.5 sq dm) |
| Wingspan: | 35.5 in (900mm) |
