  $89.99  $69.99
Add to Cart
Add to Wish List
This product is In Stock

Categories

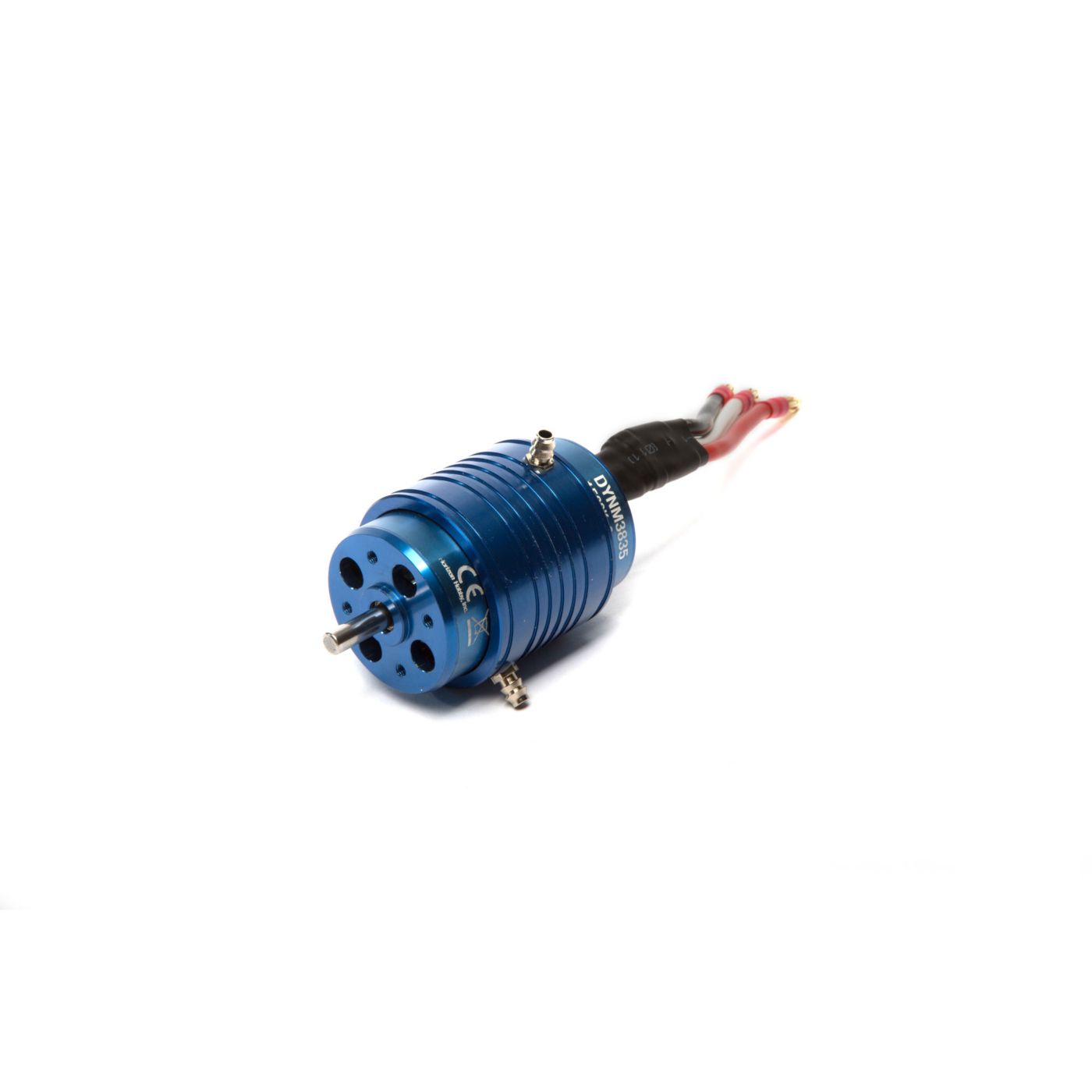

Image for A3630-1500Kv, 6-pole, Water-Cooled, Marine Motor from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Motor Type: Brushless Sensorless Inrunner
Number of Poles: 6
Size: 3650
Bearings or Bushings: Two 5×12×5mm bearings
Wire Gauge: 12 AWG
Connector Type: 4mm bullet
Turns: 2T
Adjustable Timing: No
Input Voltage: 22.2V max
RPM/Volt (Kv): 1500Kv
Resistance (Ri): 0.024Ω
Output: 800W
Efficiency: 85%
Maximum Burst Current: 65A
Cells: 2–6S LiPo (7.4–22.2V)
Weight: 7.83 oz (222g)
Overall Diameter: 1.43 in (36.2mm)
Shaft Diameter: 0.20 in (5mm)
Shaft Length: 0.51 in (13mm)
Overall Length: 2.20 in (55.8mm)
