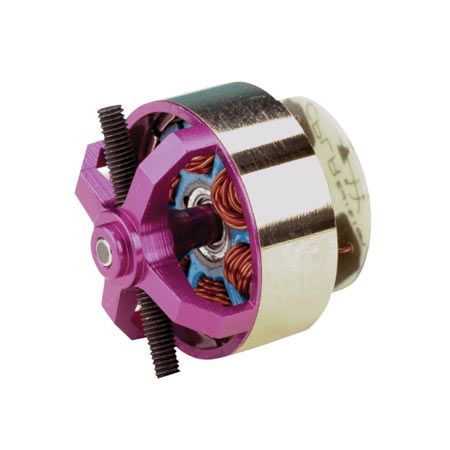

Cyclon Electronic Model Micro CPLR Brushless Outrunner Motor with CF Tube (CYLCPLR05) | Horizon Hobby - Radio Control R/C Planes, RC Airplanes, RC Helis and Helicopters, RC Cars, RC Trucks, RC Truggys, RC Boats, RC Radios, RC Engines, parts, hop-ups, and accessories

Product Description

Overview

Endorsed by F3A world champion Christophe Paysant Le-Roux, these outrunner motors provide maximum power and minimum weight—a power- to- weight ratio, in fact, far above existing direct-drive motors in the range. For instance, the smallest of the group, the Nano, weighs just 15 grams, but can turn an 8-inch prop and deliver 50 watts with a 2-cell Li-Po pack.

SIMILAR ITEMS

Specs

Application:	Airplane
Bearings or Bushings:	Ball Bearings
Cells:	2S-3S Li-Po
Idle Current (Io):	.46A @ 6V
Maximum Burst Current:	10A (100 watts)
Motor Design:	Outrunner
Overall Diameter:	26mm (1.0 in)
Overall Length:	30mm (1.2 in)
Power Plant Size :	300-400 Electric
RPM/Volt (Kv):	1480
Recommended Prop Range:	8x6 to 9x4.7 (for 2S Li-Po); 7x4 to 8x4.3 (for 3S Li-Po)
Resistance (Ri):	.250 ohms
Shaft Diameter:	Built-in Prop Saver
Speed Control:	8-10A Brushless
Type:	Brushless Outrunner
Weight:	25g (0.9 oz)
