Image for 1/10 22SCT 2WD Race Truck Kit from HorizonHobby
+ / - Hover over image to Zoom
Share
Email a Friend

Key Features

  • All metric hardware
  • Extensive instruction manual and build guide
  • Full ball bearings
  • All the components included to complete the vehicle to either rear-motor or mid-motor
  • 7075-T6 aluminum-lightened, hard-anodized chassis
  • Changeable dirt guards with short course body bumpers
  • Slide rack steering system with optimized steering Ackerman
  • Two battery-mounting configurations to accommodate both motor placements
  • Hook and loop straps to secure batteries in all configurations
  • Optimized suspension package for superior handling
  • Gull wing-designed front arms for lower front shock positioning to lower the center of gravity
  • Increased hinge pin offset from the rear arm to hub for increased rear traction
  • Front nose clearance has been maximized
  • Heavy-duty 4.0mm steel turnbuckles with HD ball cups
  • Aluminum rear pivot that can be adjusted to support 1° of pro-squat to 3° of anti-squat. Rear pivot can accommodate 3°, 3.5°, 4°, 4.5°, and 5° of toe-in
  • Front plastic pivot with 30 degrees of front kick
  • Titanium nitride-coated hinge pins
  • 4mm trailing axle spindles
  • Dual disk slipper
  • Steel RCD driveshafts
  • Ball differential with optimized ball pattern
  • Motor centered in transmission for balanced handling
  • Molded gear cover with attached rubber plug
  • Improved hub and spindle bearings
  • High-performance SCT body

Needed To Complete

- 2-Channel Radio and Receiver
- Electronic Speed Controller
- 540-Sized Motor
- Pinion Gear
- Steering Servo
- 1/10th 2WD SCT Tires and Inserts
- Battery Pack
- Charger
- Polycarbonate Paint

Video Overview

Overview

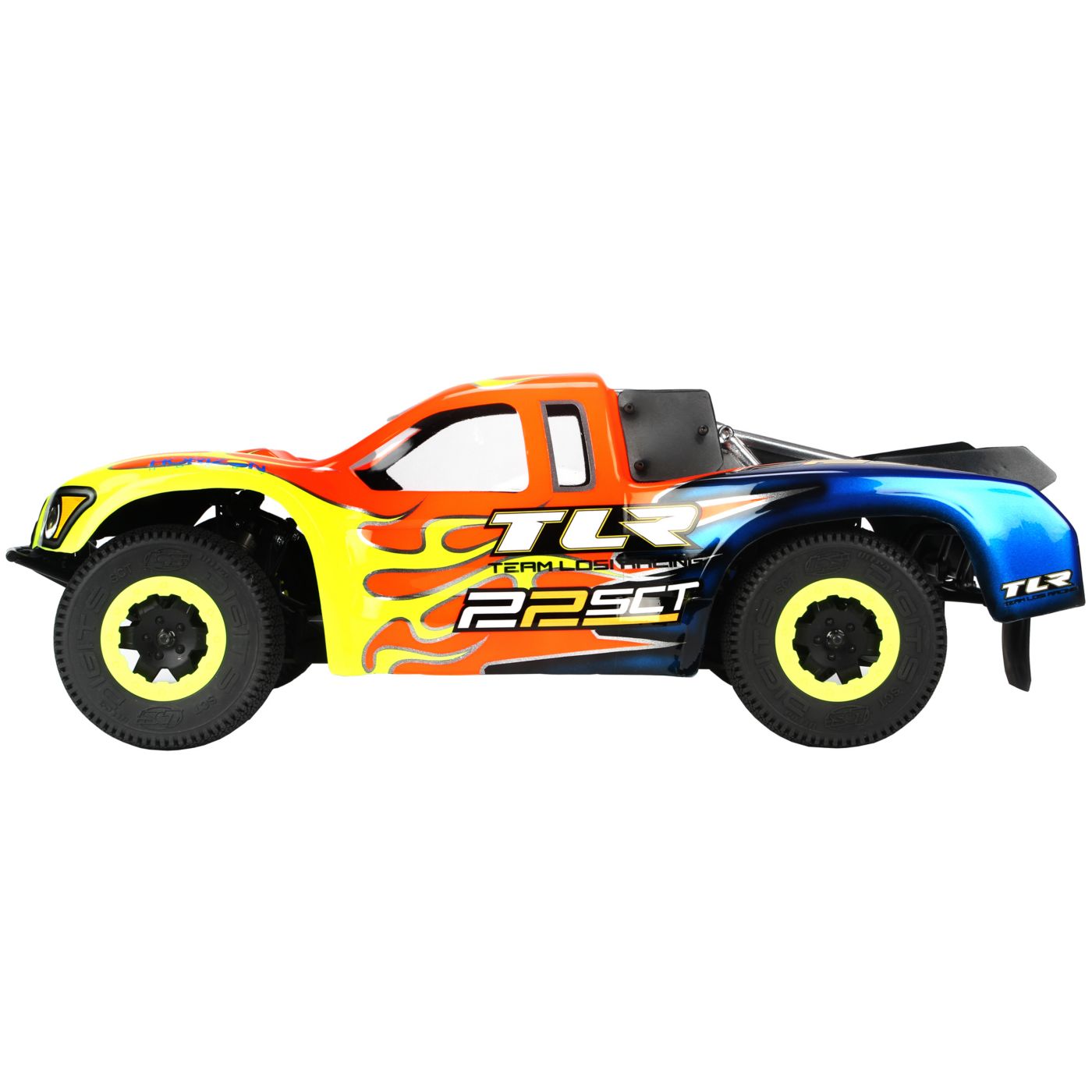

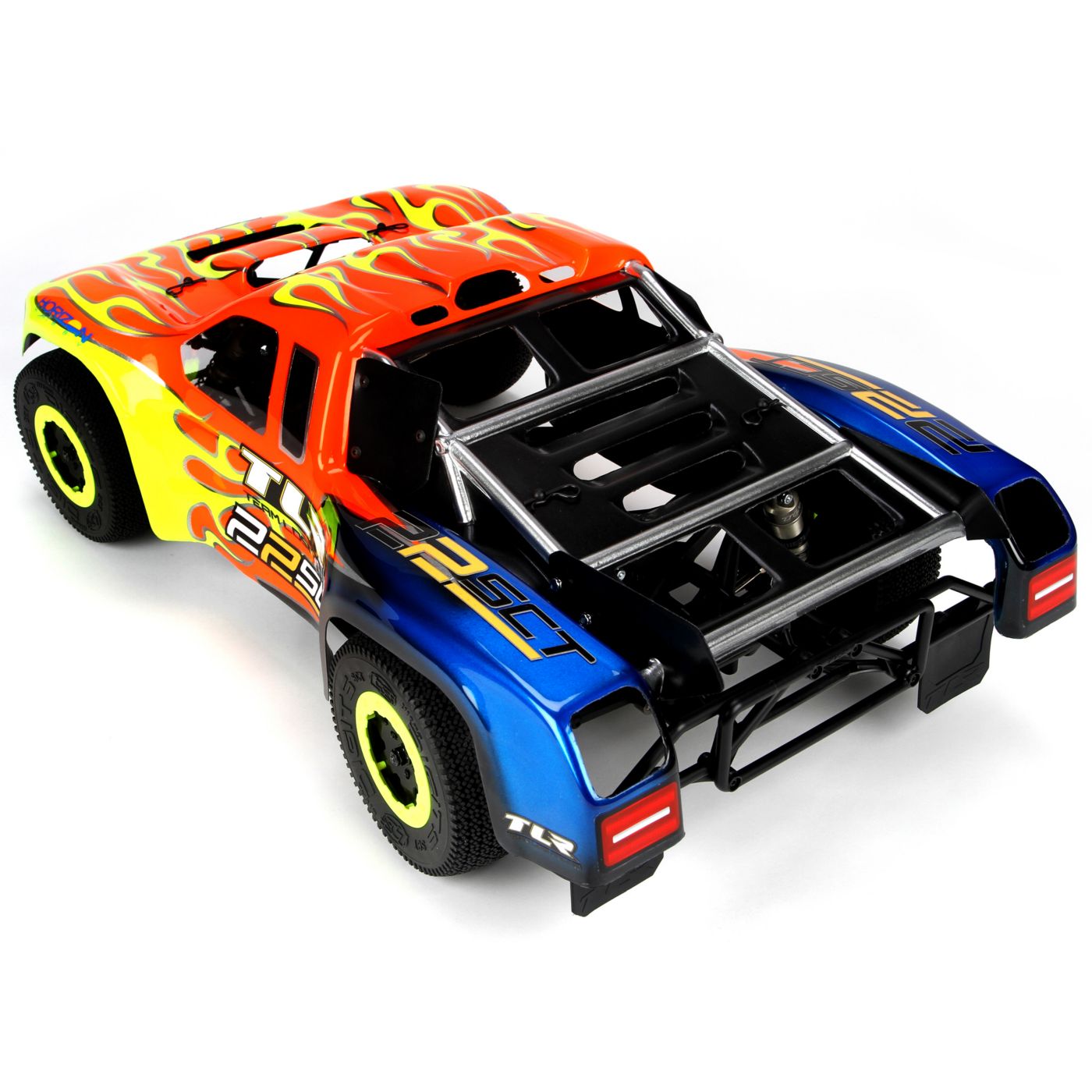

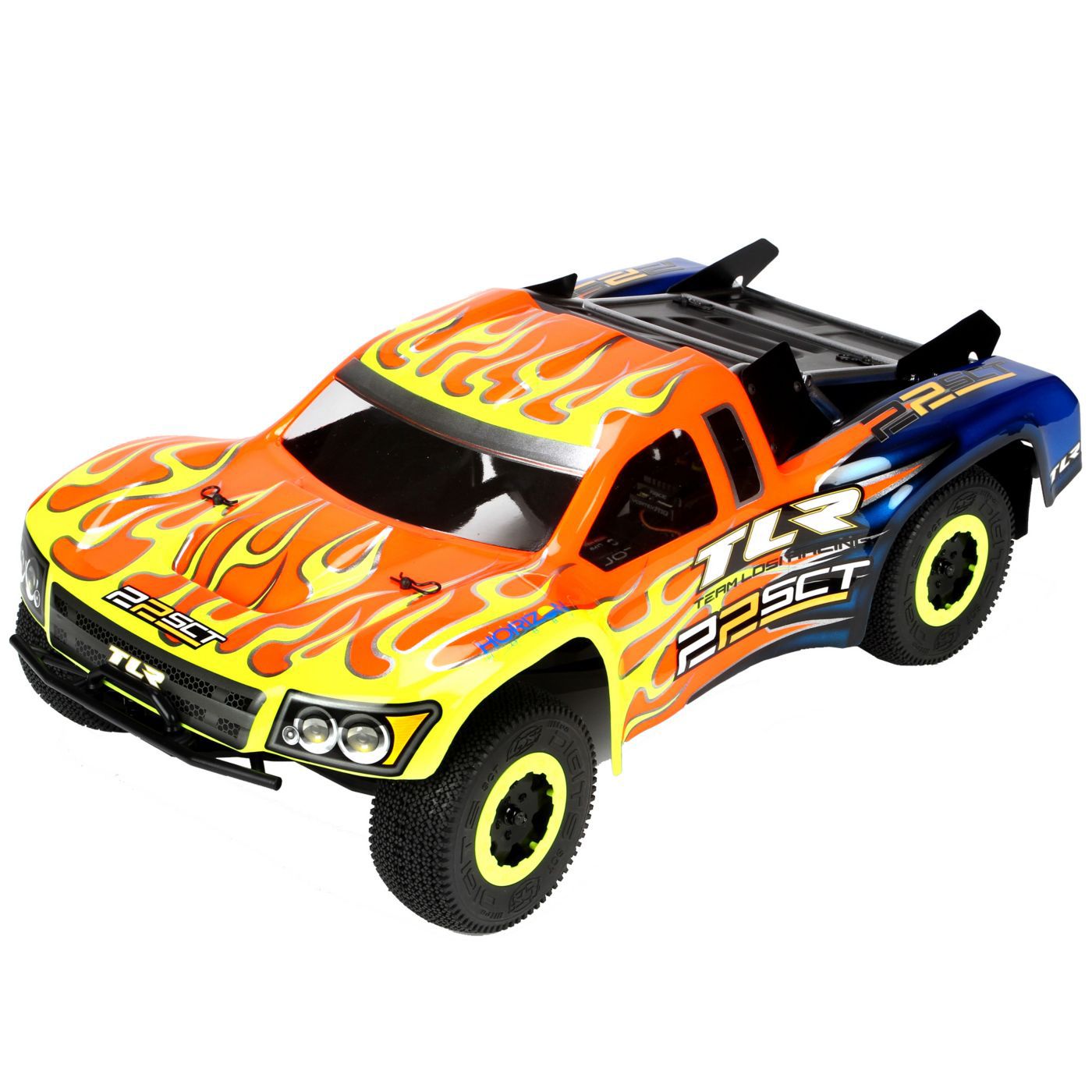

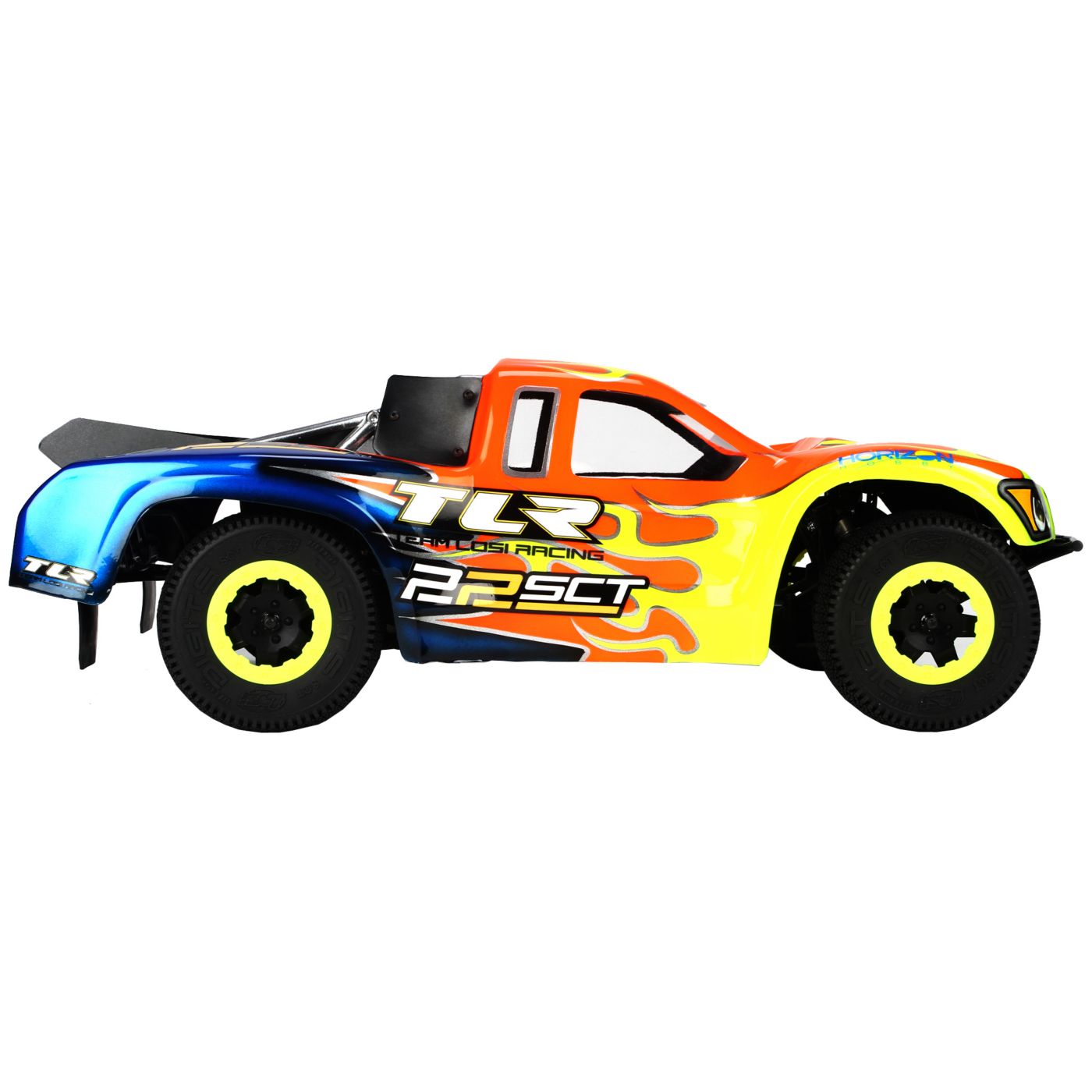

The 1/10-scale 22™SCT Short Course Truck Kit is the first short course offering from Team Losi Racing and is based on the ROAR National Champion 22™ buggy. The 22SCT will be the most innovative, durable and competitive short course truck ever engineered, since it is based on the 22 platform and designed from the ground up to be a dominating competitor.

Nothing beats experience. Especially when it comes to engineering a performance-driven race machine like the 22SCT. To create it, TLR engineers used all the knowledge and experience they gained from making the revolutionary 1/10-scale 22 buggy. They built on the championship-winning 22 platform and took it to the next level. And now the 22SCT is the most innovative, durable and competitive short course truck ever designed.

Designed to be a champion, the 22SCT borrows the majority of the innovative features that make the 22 platform a contender. Right from the start the ability to choose either mid- or rear-motor configuration, which will allow for SCT drivers to tune the ride they want depending on the track style and surface they are racing on. This will give the 22SCT a more global appeal for those currently running a mid-motor setup as the driving characteristics are similar. Other key features include a 7075-T6 aluminum chassis, full ball bearing equipped, heavy-duty 4mm turnbuckles, optimized motor and transmission placement, two full sets of wheels (8 wheels total), dish inserts for the wheels and all-metric hardware for ease of maintenance.

Related Video

Body: Clear Body, Clear Body
Chassis: 2.5mm, 7075-T6 Aluminum, 2.5mm, 7075-T6 Aluminum
Completion Level: Kit
Drivetrain: 2WD
Ground Clearance: 1.30 in (33mm), 1.30 in (33mm)
Kit/RTR: Kit
Shock Type: Oil Filled Aluminum Shocks w/ Bleeder Caps
Size/Scale: 1/10
Wheel Diameter: 2.2 in (55.8mm) / 3.0 in (76.2mm), 2.2 in (55.8mm) / 3.0 in (76.2mm)
Wheel Type: Plastic Short Course w/ Beadlock
Wheel Width: 1.54 in (39.0mm), 1.54 in (39.0mm)
