Attention AR7100 and AR7100R owners

We have received three reports of antennas wires detaching from the main receiver. Because the AR7100 utilizes one or optionally two remotely mounted receivers in most cases the user won’t realize the main antenna is detached. In some cases a slight “tail twitching” may be noticed as the antenna intermittently make contact however in many cases the issue may not be detected. It’s important to do the following check to verify that your antenna is properly connected.

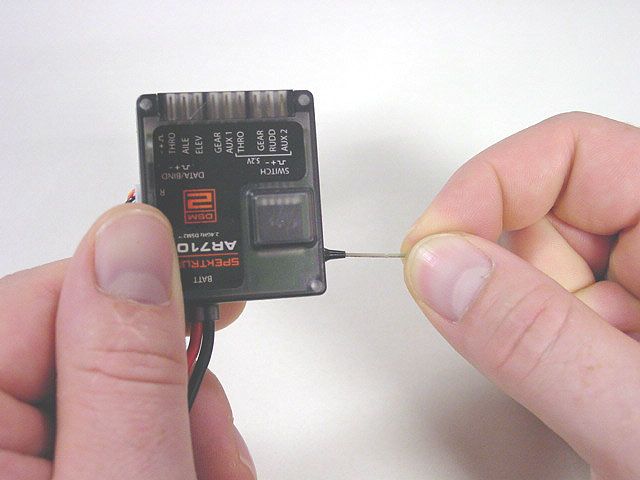

• Firmly pull on the antenna.

  The antenna should be securely attached.

  (View Larger Image)
• If the antenna comes loose the Receiver needs to be returned to Horizon’s service center for replacement.

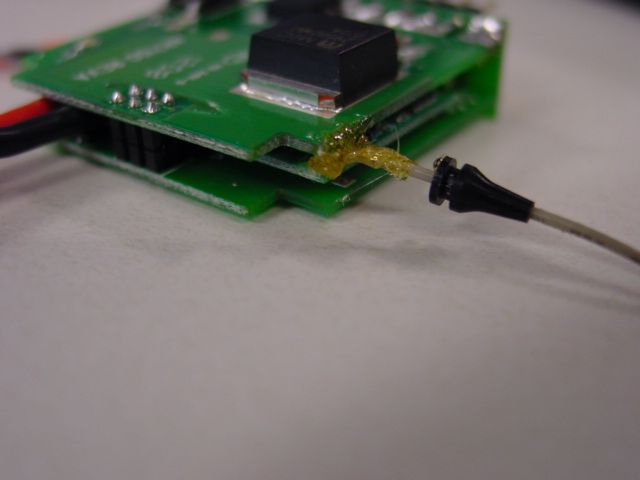

• If the antenna is firmly attached it is recommended that the case be taken apart and rubber cement, hot glue or Shoe Goo be applied as shown to reinforce the junction between the antenna and the circuit board.

  (View Larger Image)
